Dual-Circuit 4-Plug Configuration: Power-matched to seamlessly route current to standard lower rear identification light bars and dedicated license plate lamps.
-
Premium 14 AWG Conductors: Upgraded 14-gauge wiring provides robust tensile strength, manages electrical resistance, and eliminates voltage drop.
-
Molded PL-10 Connector Interface: Built with durable, factory-sealed PL-10 plugs that isolate pin connections from corrosion-causing moisture and road salt.
-
Adaptable Blunt Cut End: Unfinished terminal end allows for direct hardwiring and versatile routing into any existing central distribution box.
-
Optimized 36-Inch Length: Serves as the standard stocked length for clean, hassle-free layout across lower body panels without excessive sagging or wire slack.
-
5-Year Manufacturer Warranty: Backed by Truck-Lite’s premium 5-Year Limited Warranty, providing peace of mind and long service life.

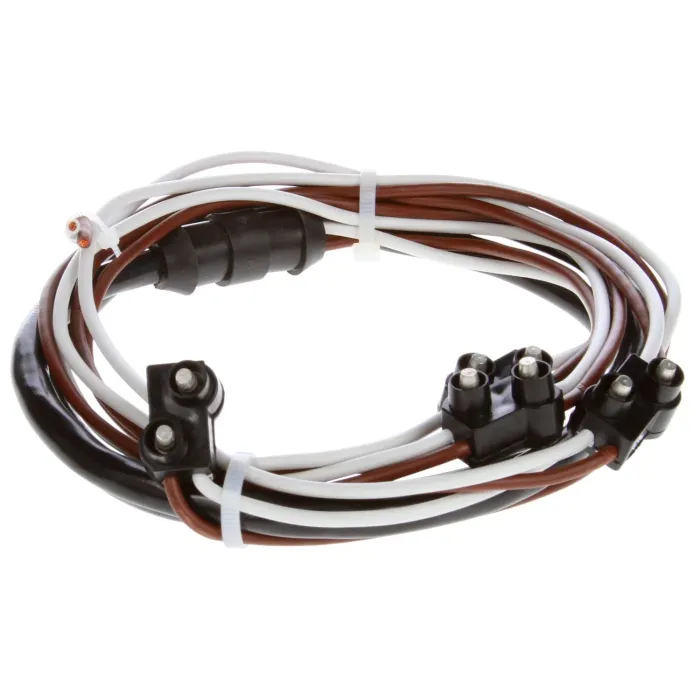

Truck-Lite 50308 – 50 Series 36” 4-Plug Lower Identification & License Plate Light Wiring Harness | PL-10 to Blunt Cut, 14 Gauge
The Truck-Lite 50308 (50 Series) Identification and License Plate Light Wiring Harness is an OEM-grade, heavy-duty electrical assembly engineered for lower mounting positions on commercial trucks, semi-trailers, and buses. Measuring a clean 36 inches (3 feet) in length, this specialized 2-conductor harness delivers simultaneous, clean electrical distribution to both your license plate illumination lamp and your lower identification/marker light bars, ensuring full DOT visibility and fleet regulatory compliance.
Heavy-Duty Construction for Lower-Chassis Reliability
Wiring mounted near the lower frame or bumper section faces constant exposure to road debris, mud, water spray, and aggressive winter de-icing chemicals. The Truck-Lite 50308 solves this problem by using a robust, factory-molded round PVC outer jacket that seals its internal copper lines away from environmental contaminants. This harness is outfitted with premium PL-10 molded plugs on one end—specifically spaced at center-to-center distances of 6 in. / 15 in. / 15 in. / 20 in. to line up with standard lower light assemblies. The opposite side features a Blunt Cut termination, giving fleet mechanics the absolute freedom to cleanly custom-splice, hardwire, or terminal-pin the harness directly into a local junction block or central trailer trunk line.
