Efficient 2-Plug Configuration: Streamlines power routing directly to a pair of side or corner marker clearance lamps.
-
Extended 14-Foot Coverage: At 168 inches, this represents the standard stocked length harness, eliminating the need for temporary intermediate field splices.
-
Premium 14 AWG Conductors: Built with a heavy-duty, 2-conductor round cable profile that manages electrical current effortlessly.
-
Corrosion-Resistant PL-10 Plugs: Outfitted with factory-sealed PL-10 plugs to isolate pin connections from moisture intrusion and pin rot.
-
Adaptable Blunt Cut End: Unfinished wire ends allow for direct hardwiring and flexible adaptation into any existing fleet wiring subsystem.
-
5-Year Manufacturer Warranty: Backed by Truck-Lite’s trusted 5-Year Limited Warranty, securing long-term fleet performance.

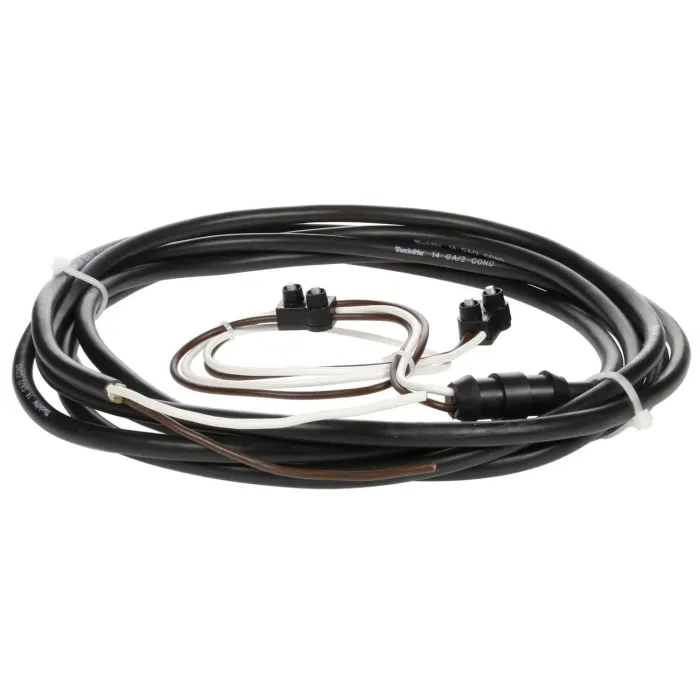

Truck-Lite 50309 – 50 Series 168” 2-Plug Marker Clearance Wiring Harness | PL-10 to Blunt Cut, 14 Gauge
The Truck-Lite 50309 (50 Series) Marker Clearance Wiring Harness is a heavy-duty, commercial-grade electrical assembly designed to power multiple clearance or marker lamps on trucks, trailers, and utility fleets. Spanning 168 inches (14 feet) in length, this premium 2-plug harness provides continuous, clean power to your designated marker lighting circuit, ensuring your vehicle remains fully visible and compliant with federal highway lighting safety standards. Constructed with robust 14-gauge copper conductors, it offers superior physical durability and minimizes voltage drop across longer runs.
Rugged Construction for Demanding Road Conditions
Commercial fleet vehicles face constant exposure to severe weather, high-pressure trailer washes, and corrosive road grime. The Truck-Lite 50309 addresses these challenges with a robust, factory-molded round cable construction that completely seals the internal wiring from moisture, dirt, and winter de-icing salts. It features a premium, molded PL-10 connector interface with a standard 6/20-inch plug center distance, delivering a secure, weatherproof fit directly to your marker lamps. The opposite side is Blunt Cut, giving fleet technicians maximum installation flexibility to cleanly route, custom-splice, or hardwire the assembly directly into a primary junction block or main trailer trunk line.
