Efficient 2-Plug Configuration: Power-matched to route current simultaneously across mid-chassis or corner marker clearance lighting stations.
-
Standard 11-Foot Reach: At 132 inches, this represents Truck-Lite's standard stocked length harness, eliminating the need for temporary field connections.
-
Heavy-Duty 14 AWG Construction: Upgraded 14-gauge copper conductors provide high tensile strength and stable electrical resistance under harsh road conditions.
-
Corrosion-Resistant Interfaces: Engineered with factory-sealed PL-10 plugs and snap-fit .180 bullet connectors to completely isolate pin contacts from moisture and pin rot.
-
Modular Infrastructure Compatibility: Designed to bridge the main chassis electrical trunk line directly to the end-use vehicle lamp array without cutting.
-
5-Year Manufacturer Warranty: Backed by Truck-Lite’s trusted 5-Year Limited Warranty, ensuring long-term fleet performance.

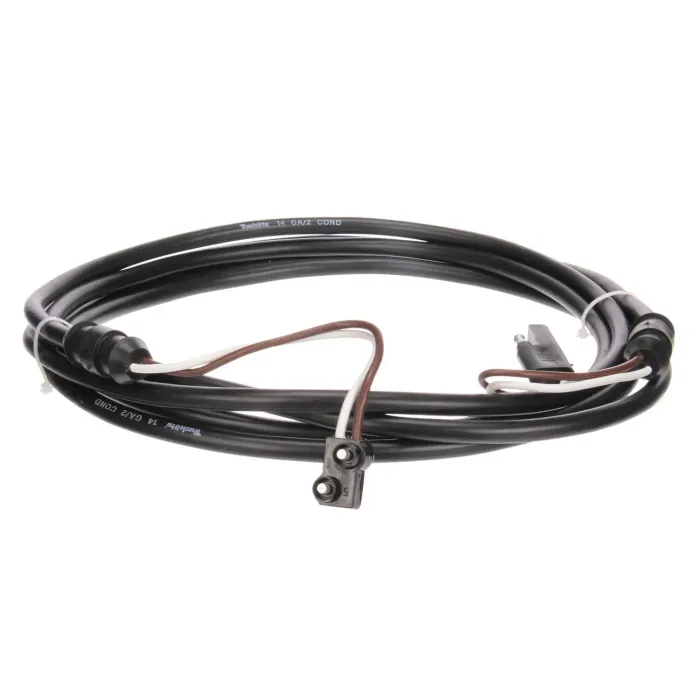

Truck-Lite 50350 – 50 Series 132” 2-Plug Clearance Marker Jumper Harness | PL-10 to 2-Position .180 Bullet Terminal, 14 Gauge
The Truck-Lite 50350 (50 Series) Clearance Marker Jumper Harness is a commercial-grade, heavy-duty electrical connection assembly engineered for commercial trucks, trailers, and utility fleets. Spanning 132 inches (11 feet) in length, this premium 2-plug jumper harness cleanly bridges intermediate wiring gaps to provide flawless power transmission and signal continuity to your vehicle's marker clearance lights. Built with a robust 14-gauge round cable profile, this harness minimizes electrical resistance and prevents voltage drops across the lighting circuit to maintain strict federal highway safety compliance.
Advanced Terminations & Sealed Fleet Protection
To ensure flexible adaptation into complex commercial electrical layouts, the Truck-Lite 50350 bridges two distinct termination styles. One side features a premium, factory-molded PL-10 right-angle pigtail plug, forming a secure, weatherproof seal directly into standard marker lamps. The opposite termination side features a specialized 2-Position .180 Bullet Terminal interface, allowing technicians to seamlessly snap, hardwire, or plug the assembly directly into an existing modular trunk line, secondary extension, or central distribution block. Encased in a factory-sealed, heavy-duty round PVC outer jacket, this harness insulates internal copper lines from road spray, moisture intrusion, high-pressure washes, and corrosive winter de-icing chemicals.
