Extreme 60-Foot Coverage: At 720 inches, this ultra-long standard stocked length harness effortlessly runs the full length of extended trailers, eliminating unsealed mid-frame connections.
-
Streamlined 1-Plug Setup: Focuses clean power delivery directly to a single marker or clearance lamp configuration.
-
Premium 14 AWG Conductors: Thicker 14-gauge 2-wire construction handles standard electrical current loads effortlessly and offers high physical tensile strength.
-
Corrosion-Resistant PL-10 Plug: Engineered with a factory-sealed PL-10 style plug to isolate pin connections from moisture intrusion and pin rot.
-
Adaptable Blunt Cut End: Unfinished wire ends allow for direct hardwiring and flexible adaptation into any existing fleet wiring subsystem or junction block.
-
5-Year Manufacturer Warranty: Backed by Truck-Lite’s trusted 5-Year Limited Warranty, securing long-term service life and fleet-wide peace of mind.

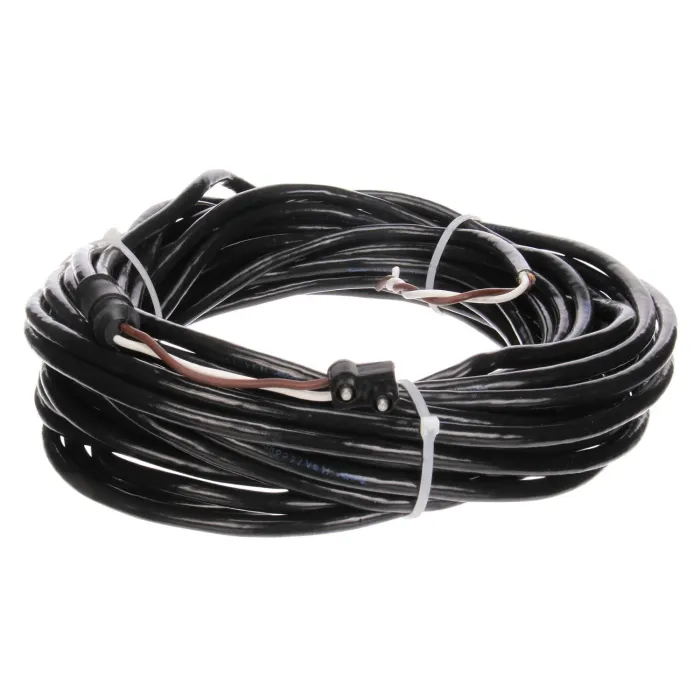

Truck-Lite 50351 – 50 Series 720” 1-Plug Marker Clearance Wiring Harness | PL-10 to Blunt Cut, 14 Gauge
The Truck-Lite 50351 (50 Series) Marker Clearance Wiring Harness is a heavy-duty, ultra-long-reach electrical assembly designed to power individual clearance or marker lamps on maximum-length commercial vehicles, multi-axle trailers, and extended fleet setups. Spanning an impressive 720 inches (60 feet) in length, this streamlined 1-plug harness delivers continuous, clean power from a centralized front junction block all the way to its designated rear or upper lighting station. Built with premium 14-gauge copper conductors, it is engineered to maintain electrical current integrity and mitigate voltage drop across extreme distances.
Rugged Construction for Extreme-Length Reliability
Maximum-length wiring runs face severe environmental exposure, constant structural vibration, and potential frame-rail friction over their long spans. The Truck-Lite 50351 addresses these challenges with a robust, factory-molded round PVC outer jacket that completely seals the internal wiring from road spray, moisture, dirt, and corrosive winter de-icing chemicals. One side is outfitted with a premium PL-10 molded plug connector, establishing a secure, weatherproof fit directly to your marker lamp. The opposite termination side is Blunt Cut, granting fleet technicians maximum flexibility to cleanly route, custom-splice, or hardwire the internal conductors directly into a primary distribution panel or main trailer trunk line without requiring unsafe intermediate field splices.
