SKU
50600
Manufactures SKU
TRUCK-LITE 50600

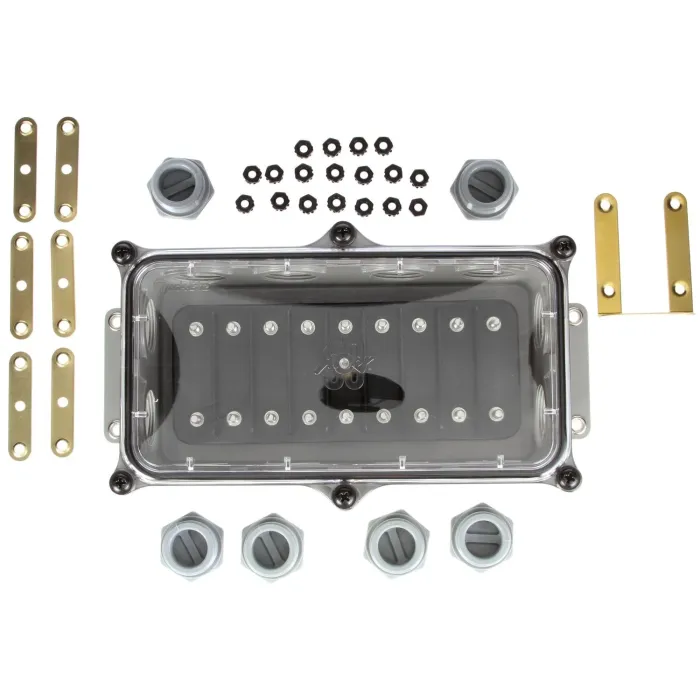

Super 50 - 12-Port - 16 Terminal - Grey/Clear Plastic - Surface Mount - Junction Box - Kit
$59.30
EA
Super 50 - 12 Ports - 16 Terminal - Junction Box - Surface Mount - Kit
Features & Benefits
With 50 percent more harness ports - alleviates the need for multiple boxes - while allowing for the addition of more harness systems and increased lighting needs - Larger box makes it easier to work on internal connections - Clear lid offers easy viewing of connections without having to remove lid - saving time when trying to identify lighting system problems - Dual "Dog bone" ground strap feature allows 4 terminals to be common - replacing the need for multiple junction boxes - offering additional cost savings - Silicone gasket on lid helps to eliminate damage from moisture and corrosives within the box - reducing costly repairs - Made of high impact - chemical resistant - approved insulating plastic providing a long service life and eliminating the time and money needed for repair and replacement - Mounted by four eyelet-reinforced holes in base of box for increased durability - Contains 12 pre-tapped holes to accept compression fittings or filler plugs allowing for greater configuration versatility - Uses 50 Series compression fittings or 50830 filler plugs (6 included in kit)
Brand
TRUCK-LITE
Housing Color
Gray | Clear
Housing Material
Plastic
KIT
Yes
Mount Type
Surface Mount
Mounting Connector Diameter
0.21
Number of Ports
12
Number of Segments
12
Number of Terminal Connections
16
Product Type
Junction Box
Series
Super 50
UPC
0735111169086
UNSPSC
39000000
VMRS
034-002-013
Warranty
5-Year
Shipping Weight (lbs)
2.150000
Total Height
3.09
Total Width
5.47
