Heavy-Duty Multi-Gauge Conductor Construction: Features high-capacity 8, 10, and 12-gauge copper wiring to easily handle the rigorous power demands of modern commercial tractor-trailer lighting and electrical configurations.
-
Streamlined Nose Box Integration: Equipped with a precision-molded Female 7-pole plug on one end and a heavy-duty ring terminal on the other, designed for clean, reliable termination inside your electrical box.
-
7-Conductor Circuit Organization: Features standard commercial color-coded wiring (Black, Brown, Blue, Red, White, Yellow) to speed up diagnostic tracing, mapping, and fleet maintenance.
-
72-Inch Extended Span: Provides 6 feet of rugged main cable routing flexibility, giving technicians ample length to route safely away from moving parts and heat sources.
-
Long-Term Environmental Defiance: Encased in a highly durable, chemical-resistant insulated protective jacket that resists chafing, engine grease, road salts, moisture, and sub-zero temperature cracking.
SKU
50776
Manufactures SKU
TRUCK-LITE 50776

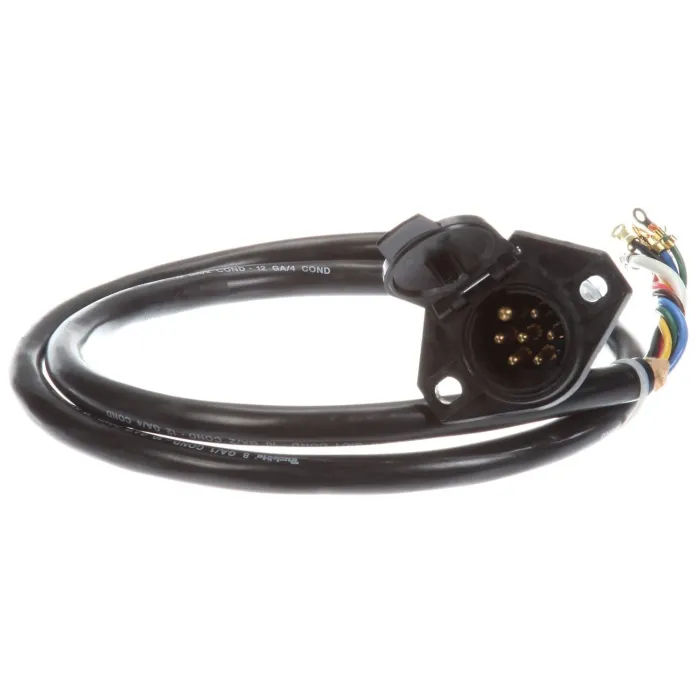

Truck-Lite 50776 88 Series Main Cable Harness – 72-Inch, 7-Conductor Nose Box Cable (8/10/12 Gauge, Female 7-Pole Plug, Ring Terminal)
$121.62
EA
Restore uncompromised electrical flow to your trailer's primary power hub with the heavy-duty Truck-Lite 50776 88 Series 72-Inch Main Cable Harness. Specially engineered for commercial vehicle nose box applications (optimized for the 50897 nose box), this premium 7-conductor cable main harness provides organized routing for complex multi-gauge power and signal distributions. Built to survive extreme fleet environments, it ensures your marker, clearance, utility, and auxiliary lighting maintain a consistent, drop-free connection.
Features & Benefits
Brand
TRUCK-LITE
Cable Type
Round
Harness Type
Main Cable
KIT
No
Number of Conductors
7
Number of Plugs
1
Product Type
Harness
Series
88 Series
Wire Color
Black | Brown | Blue | Red | White | Yellow
Wire Gauge
8 | 10 | 12
UPC
0735111172321
UNSPSC
26121700
VMRS
034-004-138
Warranty
5-Year
Shipping Weight (lbs)
3.150000
Total Height
5.5
Total Width
5.5
