SKU
50861
Manufactures SKU
TRUCK-LITE 50861

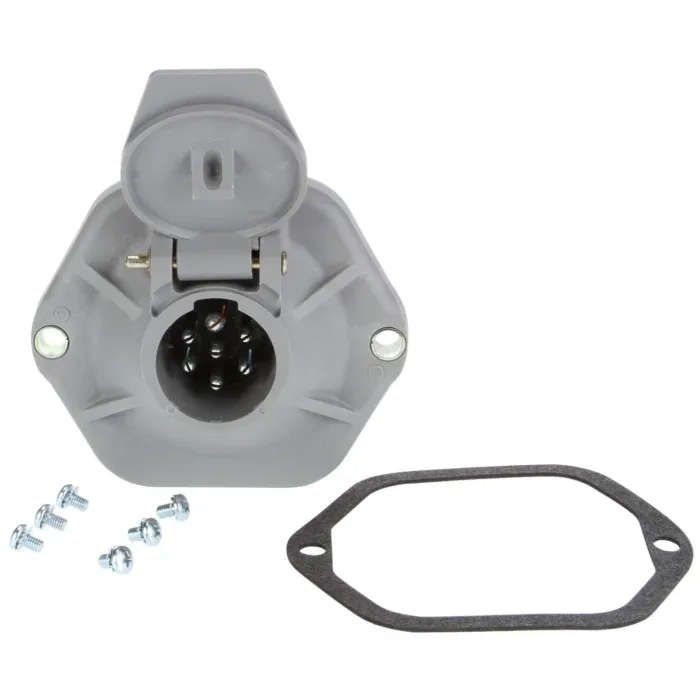

50 Series - 7 Split Pin - Grey Plastic - Surface Mount - Receptacle
$39.07
EA
50 Series - 7 Split Pin - Grey Plastic - Surface Mount - Receptacle
Features & Benefits
Tough GE Noryl - non-conductive - corrosion resistant body - Floating type - cadmium-plated brass pins allow best alignment and long-lasting contact with plug - Internal connections feature a direct wired ground - Circuits are identified by color codes and embossed notations - Ring terminals are used to connect wires - Receptacle pins prevent increased resistance due to strand breakage caused by set screws - Available in standard and circuit breaker version - Meets SAE J560 standards - We recommend using rubber boots with flush mount receptacles
Brand
TRUCK-LITE
Housing Color
Gray
Housing Material
Plastic
KIT
No
Mount Type
Surface Mount
Number of Pins
7
Product Type
Receptacle
Series
50 Series
Split/Solid Pin
Split Pin
Compliance Family
SAE J560
UPC
0735111041894
UNSPSC
39121406
VMRS
034-003-034
Warranty
1-Year
Shipping Weight (lbs)
0.540000
Total Height
4.5
Total Width
5.1
