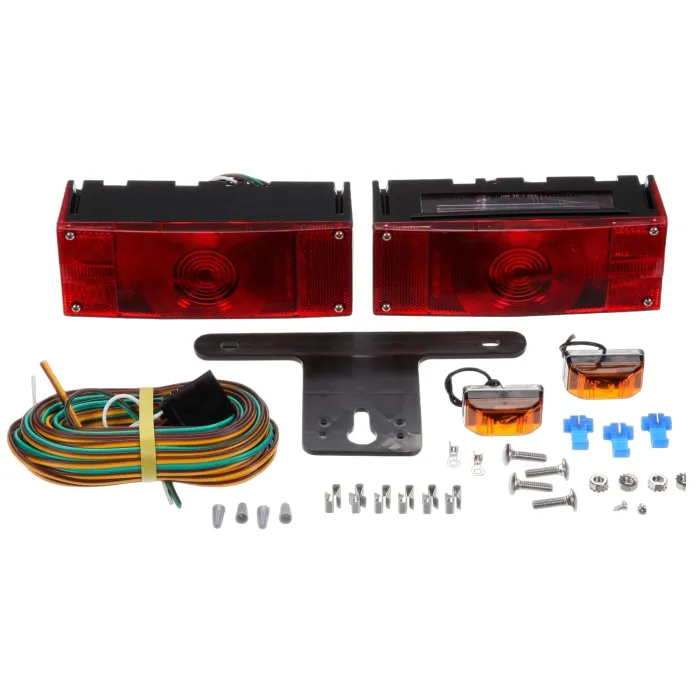

Complete Submersible 4-Lamp Kit: Includes left-hand roadside S/T/T lamp, right-hand curbside S/T/T lamp, two amber side marker/clearance lamps, mounting hardware, and wiring harness.
-
Protective Sealed Lamp Capsule: Features a deluxe sealed inner lamp capsule that protects bulbs and electrical contacts from water intrusion, corrosion, and thermal shock during boat launching.
-
Integrated Downward License Light Window: Left-hand roadside tail lamp includes a clear bottom optic window to illuminate rear license plates, ensuring full DOT/FMVSS 108 compliance.
-
Full Legal Compliance for Personal Trailers: Engineered specifically for personal trailers under 80 inches wide, including boat trailers, jet ski trailers, utility trailers, and camper haulers.
-
Corrosion-Resistant Polycarbonate Body: Impact-resistant polycarbonate housing and acrylic lenses resist rust, corrosion, salt, and harsh marine environments.
-
18 AWG Hardwired Wiring Harness: Pre-wired 8-wire lead system featuring stripped wire ends and ring terminal for direct 12V electrical connections.
Truck-Lite 530DK – Signal-Stat® Submersible Incandescent Personal Trailer Lighting Kit (LH & RH Stop/Turn/Tail Lamps, Amber Marker Lamps, Hardwired Harness, Clamshell Display)
Protect your marine and personal utility trailer from water damage and electrical failure with the Truck-Lite 530DK Signal-Stat® Submersible Incandescent Trailer Kit. Specifically engineered for personal trailers under 80 inches wide—especially boat trailers and personal watercraft haulers that are routinely backed into the water—this complete 4-lamp lighting package delivers total roadside visibility and full legal compliance.
Standard incandescent trailer lights frequently fail when exposed to water due to thermal shock blowing hot bulbs or corrosion destroying electrical contacts. The Truck-Lite 530DK solves this problem with an innovative sealed lamp capsule design. This internal capsule completely insulates the bulb and brass contacts from moisture, preventing corrosion and extending service life season after season.
The 530DK kit provides complete 360-degree coverage for your trailer:
-
Left-Hand (LH) Roadside Lamp: Slimline S/T/T lamp with integrated license plate illuminator window.
-
Right-Hand (RH) Curbside Lamp: Slimline S/T/T lamp with stop, turn, and tail light functions.
-
2x Amber Side Marker/Clearance Lamps: Front/side clearance lamps to define trailer width to oncoming traffic.
-
18 AWG Wiring Harness: 8-wire harness with stripped wire ends and ring terminals for straightforward installation.
Truck-Lite: 530DK, TK530DK, TL530DK, TRL-530DK, LIT530DK
Grote: 65300-5, 653005
Peterson Manufacturing: V547, 547
Industry Crosses: 724956755493, 25172900
