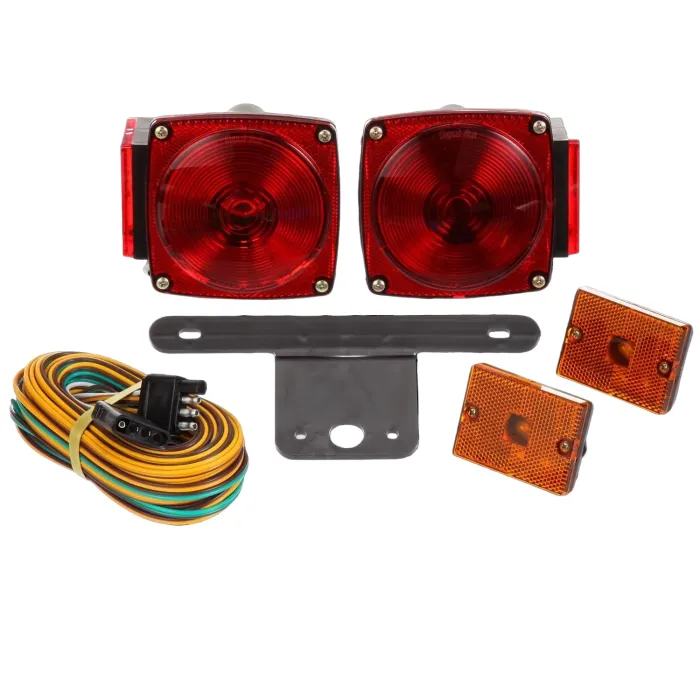

Complete 4-Lamp Trailer Lighting Package: Includes left-hand roadside S/T/T lamp, right-hand curbside S/T/T lamp, two front amber side marker/clearance lamps with built-in reflectors, and mounting hardware.
-
Full Legal Compliance for Trailers Under 80": Provides all legal lighting and reflective devices required for personal trailers under 80 inches wide.
-
Corrosion-Proof Plastic Construction: Durable polycarbonate body and acrylic lenses prevent rust and corrosion on camping, motorcycle, horse, and utility trailers.
-
20-Foot Split "Y" Wiring Harness Included: Features a 20-foot, 4-wire split Y-harness with 18-gauge stripped wire ends for simple, splice-free trailer wiring setup.
-
Standard 2-Stud Lamp Mounting: Rear S/T/T lamps feature a standard 2-stud bolt pattern on 2-inch centers for easy mounting to trailer frame brackets.
-
Complete Hardware Accessories Kit: Comes packed with a flexible license plate bracket, frame clips, wire nuts, and easy-to-read installation instructions.
Truck-Lite 533DK – Signal-Stat® Incandescent Personal Trailer Lighting Kit (LH & RH Stop/Turn/Tail Lamps, Amber Marker Lamps, 20ft Y-Harness, Clamshell Display)
Outfit your utility or recreational trailer with complete DOT-compliant safety lighting using the Truck-Lite 533DK Signal-Stat® Incandescent Personal Trailer Kit. Specifically designed for personal trailers under 80 inches wide—including utility haulers, motorcycle trailers, horse trailers, and camper trailers—this complete 4-lamp lighting package delivers reliable rear and side visibility.
Built with impact-resistant polycarbonate housings and acrylic lenses, the Truck-Lite 533DK resists rust, weather exposure, and chassis vibration for reliable season-after-season performance.
The Truck-Lite 533DK kit provides total 360-degree coverage for your light-duty trailer:
-
Left-Hand (LH) Roadside Lamp: Multi-function S/T/T lamp with integrated downward license plate illuminator window.
-
Right-Hand (RH) Curbside Lamp: Multi-function S/T/T lamp for stop, turn, and tail signaling.
-
2x Amber Side Marker/Clearance Lamps: Front/side clearance lamps equipped with integrated reflex reflectors.
Eliminate tedious wiring splices with the included 20-foot 4-wire split Y-harness. Featuring 18 AWG wiring with stripped lead ends, the harness runs cleanly down both sides of your trailer frame. The kit includes frame clips, wire nuts, and a flexible license plate mounting bracket for a fast, professional installation.
Truck-Lite: 533DK, TK533DK, TL533DK, TRL-533DK, LIT533DK
Grote: 65370-5, 653705
Peterson Manufacturing: V540, 540
NAPA: LIT533DK
LED Upgrade Alternatives: Truck-Lite 5050DK or 5051DK
