Multi-Function Performance: Operates as a Stop, Turn, and Tail signal lamp for full DOT compliance.
-
Pillow Optics Lens: Advanced polycarbonate lens design optimizes light output for enhanced safety.
-
Surface Mount Design: Features a 4-screw mounting pattern for easy installation on flat surfaces.
-
Serviceable Construction: Bulb-replaceable design (uses standard 1157 or equivalent bulbs) for long-term value.
-
Universal Application: Perfect for utility trailers, agricultural equipment, and specialized industrial vehicles.
SKU
548
Manufactures SKU
TRUCK-LITE 548

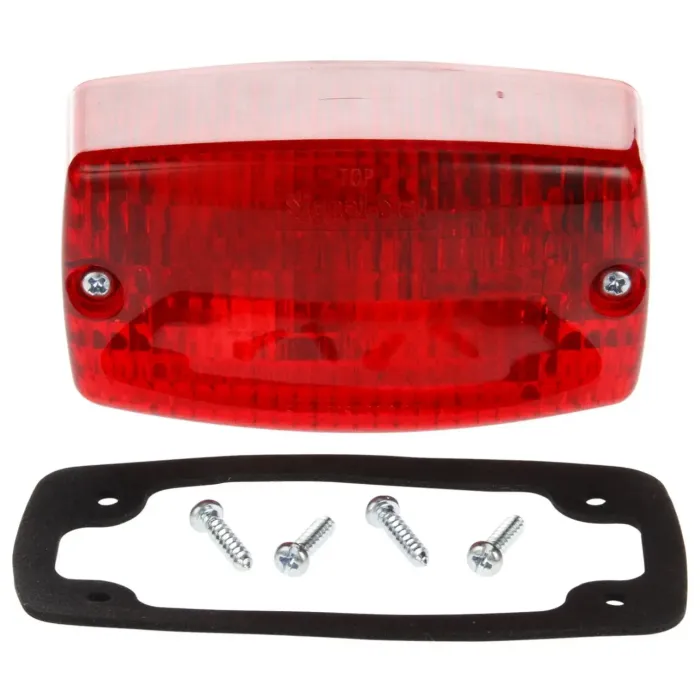

Truck-Lite 548 Signal-Stat Rectangular Stop/Turn/Tail Light – 12V Surface Mount, Incandescent, Red
$12.48
EA
Versatile Signaling for Light-Duty and Industrial Vehicles
The Truck-Lite 548 Signal-Stat Rectangular Light is a reliable, multi-function lighting solution designed for surface-mount applications. Ideal for light-duty trailers, golf carts, and industrial equipment, this lamp integrates Stop, Turn, and Tail (S/T/T) functions into a single, compact housing. Its classic rectangular design and rugged construction make it a go-to replacement part for maintaining vehicle safety and visibility.
Built for Durability and Clarity
Engineered with a high-impact red polycarbonate lens featuring "pillow optics," the Signal-Stat 548 ensures maximum light dispersion and superior visibility from various angles. The assembly is supported by a heavy-duty stamped steel back plate, providing a stable foundation for surface mounting. As a bulb-replaceable unit, it offers a cost-effective alternative to sealed lamps, allowing for easy maintenance without replacing the entire fixture.
Key Details
Brand
Signal-Stat
Common Size
3 x 4
Current Major Amp
2.25
Current Minor Amp
1.42
KIT
No
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
2.56
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
4.56
Lighting Technology
Incandescent
Mount Type
4 Screw
Mounting Connector Diameter
0.15
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
Stop/Turn/Tail
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
I | P | S | T
UPC
0735111157953
UNSPSC
25172900
VMRS
034-002-000
Warranty
1-Year
Shipping Weight (lbs)
0.830000
Total Height
2.56
Total Width
4.56
SS548-S
