SKU
5800AA
Manufactures SKU
TRUCK-LITE 5800AA

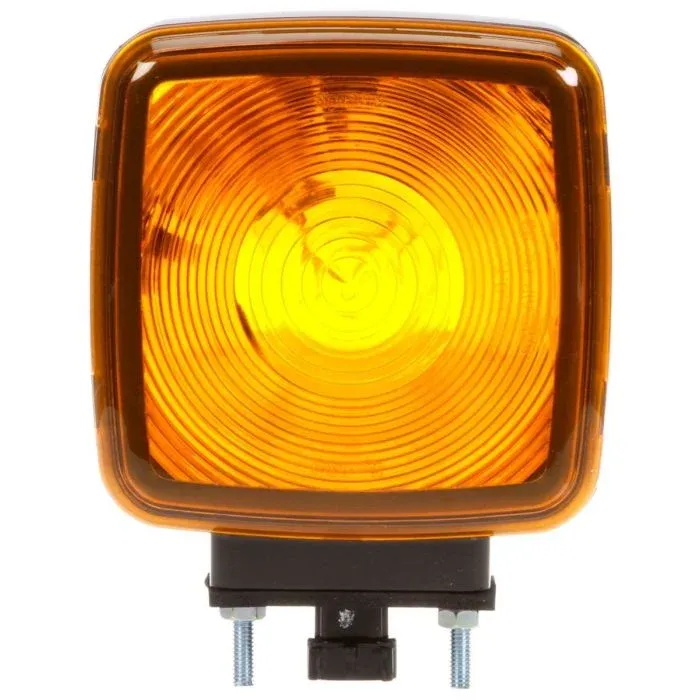

Signal-Stat - 5800 Series - Incandescent - Yellow Square - 1 Bulb - Dual Face - Vertical Mount - Side Marker - Pedestal Light - 2 Stud - Black - Stripped End
$63.26
EA
Signal-Stat - Dual Face - Vertical Mount - 5800 Series - Incan. - Yellow Square - 1 Bulb - Black - Pedestal Light
Features & Benefits
Polycarbonate Snap-On/snap-off lens - no screws - Special Packard Metri-Pack connector - Combination side marker lamp and reflex reflector lens - Mounts left or right - Unbreakable - easy bulb replacement one lens sealed - one lens snaps on/off - For quick - easy connection that eliminates corrosion - Isolates the bulb from the jarring effects of road shock and vibration - For front turn signal - park and side marker - Eliminates the need for separate side marker lamp and reflex reflector - Positive lens fit - corrosion proof - watertight - GM #15565531
Brand
Signal-Stat
Common Size
5 x 5
Current Major Amp
2.1
Current Minor Amp
0.59
Housing Color
Black
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Packard Connector
Lens Color
Yellow
Lens Height
4.8
Lens Material
Polycarbonate
Lens Shape
Square
Lens Width
4.8
Lighting Technology
Incandescent
Mount Type
2 Stud Mount
Mounting Connector Diameter
0.236
Mounting Orientation
Vertical
Number of Diodes/Bulbs
1
Number of Faces
Dual Face
Position
Universal
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
I6 | P
UPC
0724956161812
UNSPSC
25172900
VMRS
034-003-057
Warranty
1-Year
Shipping Weight (lbs)
0.960000
Total Height
4.8
Total Width
4.8
