26-Diode High-Output LED Optics: High-count red LED array provides bright, immediate Center High-Mounted Stop Lamp (CHMSL) signaling for commercial trucks, trailers, and service bodies.
-
Integrated Gray ABS Flange Mount: Permanent, impact-resistant gray ABS plastic flange allows clean, flush surface mounting directly to vehicle panels without requiring separate grommets.
-
Epoxy-Encapsulated Electronics: Circuit board and internal electronics are fully encapsulated in epoxy, insulating components from harsh chassis vibration, road impact, and shock.
-
Instant-On Braking Reaction Advantage: Solid-state LEDs illuminate instantly, giving trailing drivers an extra 3 feet of stopping reaction distance for every 10 mph.
-
Fit 'N Forget® Corrosion-Proof System: Features a sealed Fit 'N Forget® Stainless Steel (S.S.) plug connection that completely locks out moisture, road salt, chemicals, and corrosion.
-

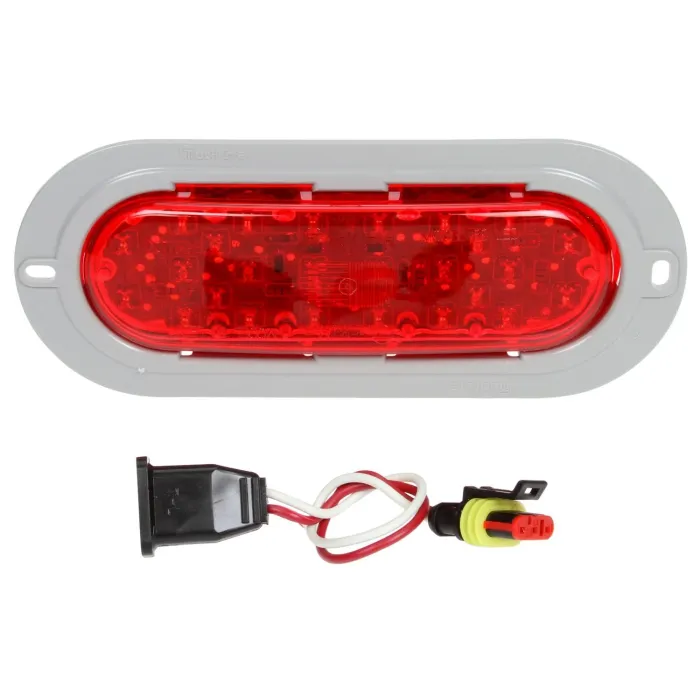

Complete Plug-and-Play Kit: Fully equipped with the 26-diode red LED flange lamp, integrated gray ABS flange, and a Fit 'N Forget® to straight female PL-2 pigtail adapter harness.
Truck-Lite 60062R – 60 Series 26-Diode LED Red Oval 2" x 6" High-Mounted Auxiliary Stop Light Kit (Gray ABS Flange Mount, Fit 'N Forget® S.S., Straight PL-2 Female Adapter, 12V)
Upgrade high-level brake signaling and rearward visibility across your fleet with the Truck-Lite 60062R 60 Series Red Oval 26-Diode LED High-Mounted Stop Light Kit. Engineered specifically for surface-mount auxiliary stop light applications on commercial semi-trucks, box trailers, buses, and service vehicles, this 2" x 6" red oval LED CHMSL kit provides dependable braking notice under demanding highway conditions.
Constructed with an impact-resistant red polycarbonate lens and an integrated gray ABS flange, the Truck-Lite 60062R features internal electronics that are fully potted in epoxy for total defense against chassis vibration, road spray, moisture intrusion, and extreme weather.
Unlike traditional incandescent lamps that suffer lag when activated, the solid-state Truck-Lite 60062R lights up instantly. This rapid response time provides drivers following your vehicle a critical safety buffer—delivering an average of 3 additional feet of braking reaction distance for every 10 mph.
The permanently attached gray ABS plastic flange provides a sleek, tamper-resistant flush profile that mounts cleanly to flat rear trailer walls or vehicle panels.
To safeguard critical electrical terminals against corrosion and road chemicals, the lamp utilizes Truck-Lite's signature Fit 'N Forget® S.S. connection system. Paired with the included straight female PL-2 adapter harness, this kit ensures a tight, weather-proof seal built for long service life.
Truck-Lite: 60062R, TK60062R, TL60062R, TRL-60062R, LIT60062R, 60262R
Grote: 53122, 53592
Industry Crosses: 0735111021520, 25172900, MTL06006200R
