Diamond Shell Clear Lens Optics: Features Truck-Lite’s unique Diamond Shell optic design, utilizing internal red LEDs behind a high-clarity lens for crisp, distinct stop, turn, and tail light output.
-
26-Diode High-Output LED Array: High diode count produces bright, uniform red illumination for maximum rearward visibility across commercial trucks and trailers.
-
Instant-On Braking Reaction Distance: Solid-state LEDs activate instantly, giving trailing drivers up to an additional 3 feet of stopping reaction distance for every 10 mph.
-
Fit 'N Forget® Corrosion Protection System: Sealed Fit 'N Forget® Stainless Steel (S.S.) plug interface insulates terminal connection pins from road spray, moisture, and chemical de-icers.
-
Complete Plug-and-Play Kit: Comes fully equipped with the 60885R Diamond Shell red oval LED lamp, heavy-duty black PVC flush-mount grommet (60700), and a Fit 'N Forget® to straight female PL-3 pigtail adapter harness (94706).
-
Solid-State Polycarbonate Construction: Hermetically sealed lens and housing contain no filaments, rendering the light fixture completely immune to chassis vibration and road shock.

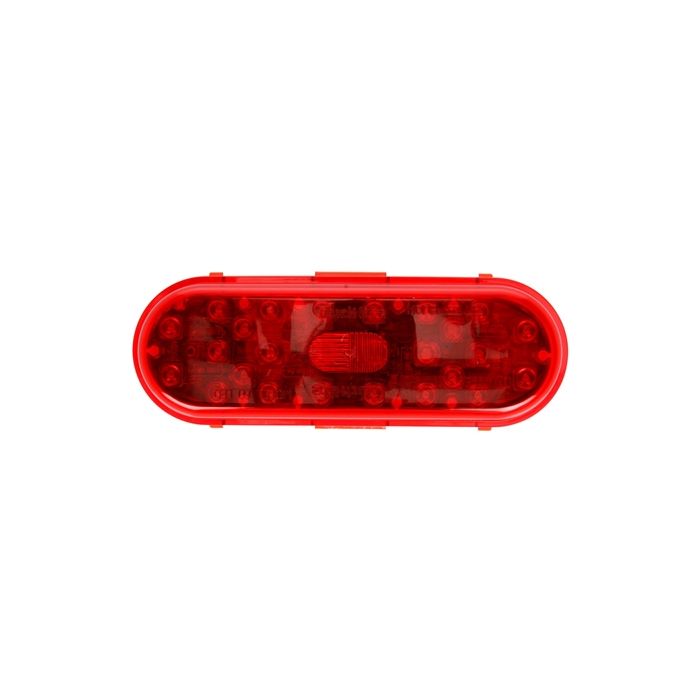

Truck-Lite 60085R – 60 Series 26-Diode LED Red Oval 2" x 6" Diamond Shell Stop/Turn/Tail Light Kit (Black PVC Grommet Mount, Fit 'N Forget® S.S., Straight Female PL-3 Adapter, 12V)
Upgrade rearward visibility, braking safety, and fleet aesthetic on commercial haulers with the Truck-Lite 60085R 60 Series Red Oval 26-Diode LED Diamond Shell Stop/Turn/Tail Light Kit. Engineered for heavy-duty commercial semi-trailers, box trucks, service bodies, and vocational fleets, this 2" x 6" red oval LED kit delivers high-intensity 3-in-1 rear brake, turn signal, and tail light performance.
Featuring Truck-Lite's signature Diamond Shell optics, this lamp utilizes specialized lens patterning that enhances light dispersion while giving your vehicle a modern, premium appearance.
Standard incandescent tail lamps lag upon activation, but the solid-state Truck-Lite 60085R lights up instantly. This faster activation gives trailing drivers a critical safety buffer—providing an average of 3 feet of additional braking reaction distance for every 10 mph.
The included heavy-duty black PVC flush-mount grommet firmly seats the lamp into standard 2.5" x 6.75" oval vehicle cut-outs while isolating the light engine from severe chassis shock and road impact.
To prevent terminal corrosion and moisture damage at electrical connection points, the lamp features Truck-Lite's signature Fit 'N Forget® S.S. connection interface. Paired with the included straight female PL-3 adapter harness, this kit maintains a weather-tight seal built for long service life in harsh environments.
Truck-Lite: 60085R, TK60085R, TL60085R, TRL-60085R, LIT60085R, 60885R (Lamp Only)
Grote: 53122, 53962
Optronics: STL72RS
Peterson Manufacturing: V420KR-2
Industry Crosses: 0735111021599, 25172900, 8413-60085R
