Shock-Mounted Filament: Internal shock-mounting protects the incandescent bulb from road vibration, extending operating life.
-
Sonically Sealed Construction: Permanently sealed polycarbonate lens and housing prevent moisture, water, and dust intrusion.
-
Single Lamp Compliance: High-output design requires only one lamp to meet federal backing light standards when installed properly.
-
Flexible Orientation: Fully legal for installation in either horizontal or vertical mounting positions.
-
Industry-Standard PL-2 Connection: Integrates seamlessly with standard 2-wire PL-2 female pigtail harnesses.
-
DOT & SAE Compliant: Fully meets FMVSS 108, CMVSS 108, and SAE code R requirements for backing lights.
SKU
60284C
Manufactures SKU
TRUCK-LITE 60284C

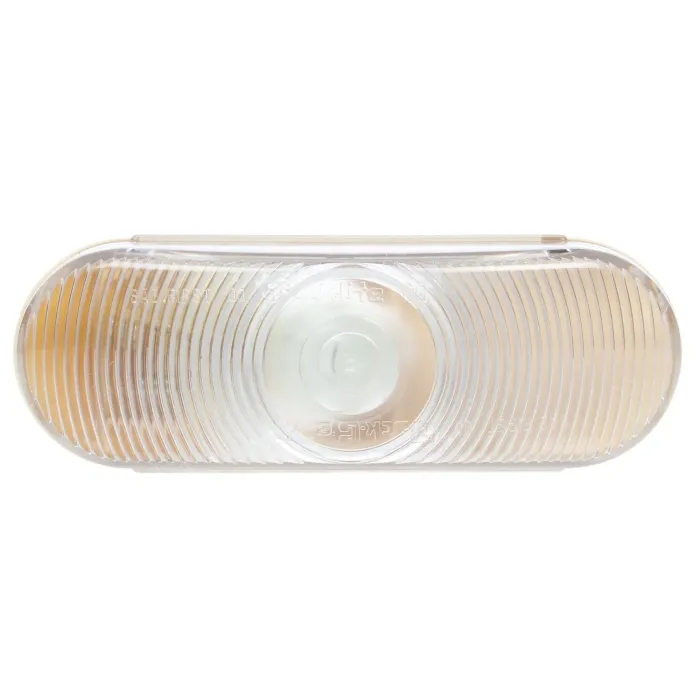

Truck-Lite 60284C – 60 Series, Economy, Incandescent, Clear Oval 1-Bulb Back-Up Light (PL-2, 12V)
$9.40
EA
Ensure safety and visibility when reversing with the Truck-Lite 60284C 60 Series Economy Clear Oval Incandescent Back-Up Light. Engineered as a high-value, reliable reversing signal for heavy-duty trucks, trailers, buses, and commercial transport vehicles, this 2" x 6" oval lamp delivers clear, powerful illumination where you need it most.
Featuring a sonically sealed clear polycarbonate lens and housing, the 60284C shields internal components against moisture, dirt, and road debris. Built with an internal shock-mounted bulb cradle, it absorbs heavy road vibration to significantly prolong filament life, making it a cost-effective choice for fleet operators.
The Truck-Lite 60284C offers dependable incandescent performance at an economical price point. Operating on standard 12V DC systems, it draws 2.1 Amps during reverse gear engagement. Designed for standard 60 Series grommet mounting (such as Truck-Lite #60700), it offers quick plug-and-play maintenance for fleet technicians.
Note: The 60284C is designed strictly as an exterior vehicle backing/reverse light and is not recommended for interior dome light applications.
Key Details
Brand
TRUCK-LITE
Common Size
2 x 6
Current Amp
2.1
Housing Material
Polycarbonate
KIT
No
Lamp Connection
PL-2
Lens Color
Clear
Lens Height
2.26
Lens Material
Polycarbonate
Lens Shape
Oval
Lens Width
6.5
Lighting Technology
Incandescent
Mount Type
Grommet Mount
Number of Diodes/Bulbs
1
Product Type
Back-Up Light
Sealed/Bulb Replaceable
Sealed
Series
60 Series
Voltage
12
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
R
UPC
0735111070832
UNSPSC
25172900
VMRS
034-003-074
Warranty
1-Year
Shipping Weight (lbs)
0.400000
Total Height
2.25
Total Width
6.38
