Complete Lighting Kit: Includes the sealed red oval S/T/T lamp, gray PVC mounting grommet, and pre-attached hardwired pigtail harness for immediate installation.
-
Direct Hardwired Harness: Comes integrated with a 3-wire 16-gauge harness featuring stripped lead ends and a ring terminal for secure, corrosion-resistant wiring.
-
Heavy-Duty Dual-Filament Bulb: High-performance incandescent bulb delivers consistent tail light illumination and clear, high-intensity stop and turn signals.
-
Sealed Polycarbonate Housing: Impact-resistant polycarbonate lens and body are sonically sealed to block out water, dust, and weather elements.
-
Versatile Mounting Design: Can be flush-mounted using the included gray PVC grommet or screw-mounted depending on vehicle cutout requirements.
-
Full DOT & SAE Compliance: Fully compliant with FMVSS 108 and CMVSS 108 requirements (SAE codes I6, P2, S2, T).

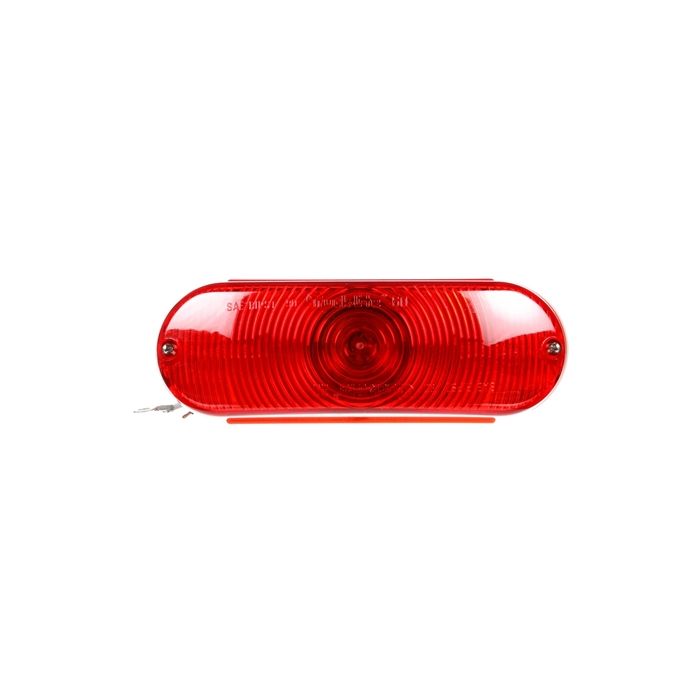

Truck-Lite 60302R – 60 Series, Red Oval 1-Bulb Incandescent Stop/Turn/Tail Light Kit (Gray PVC Grommet Mount, Hardwired Lead w/ Stripped End & Ring Terminal, 12V)
Streamline your fleet maintenance and ensure complete highway safety with the Truck-Lite 60302R 60 Series Red Oval Incandescent Stop/Turn/Tail Light Kit. Supplied as a comprehensive, ready-to-install lighting solution, this complete kit includes a sealed 2" x 6" red oval lamp, a durable gray PVC mounting grommet, and an integrated 3-wire hardwired harness with stripped ends and ring terminal.
Engineered with a high-impact red polycarbonate lens and housing, the 60302R features a permanently sealed unit that protects the heavy-duty dual-filament bulb against moisture, dirt, and road corrosion. The included gray PVC grommet allows for versatile grommet-mount or screw-mount installations on standard commercial trucks, trailers, tractors, and utility vehicles.
The Truck-Lite 60302R kit simplifies replacement and installation by eliminating the need for separate pigtail plug assemblies. Operating on standard 12V electrical systems, it draws 2.1 Amps (Major) for stop and turn signals and 0.48 Amps (Minor) for tail light functions.
Whether you are refurbishing heavy-duty transport trailers or replacing damaged lighting on vocational trucks, this hardwired kit provides reliable signaling and long-lasting durability backed by a 1-year manufacturer warranty.
