Shallow Curved Lens Profile: Low-depth design allows flush-mount installation in tight spaces where rear clearance is restricted.
-
Ideal for Liftgate Applications: Perfect for vehicles featuring liftgates, roll-up rear doors, or tight mounting enclosures.
-
18-Diode Solid-State LED Array: Provides bright, reliable stop, turn, and tail light illumination with lower current draw than incandescent lamps.
-
Integrated Black Flange Mount: Sturdy black polycarbonate flange provides a sleek, surface-mounted frame for heavy-duty vehicle bodies.
-
Industry-Standard PL-3 Connection: Easily connects with standard 3-wire PL-3 female pigtail harnesses for quick installation and servicing.
-
DOT & SAE Compliant: Meets FMVSS 108 and CMVSS 108 safety standards (SAE codes I6, P2, S2, T).

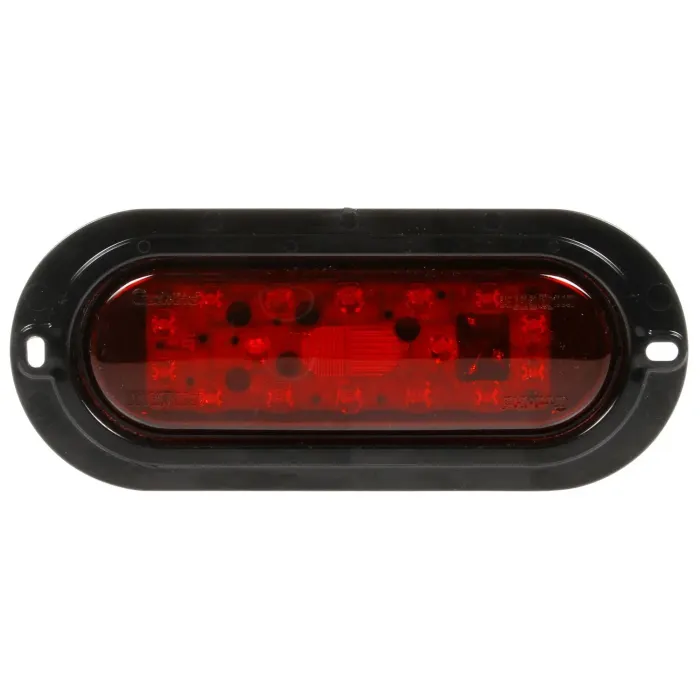

Truck-Lite 60356R – 60 Series, Red Oval 18-Diode LED Stop/Turn/Tail Light (Black Flange Mount, PL-3, 12V)
Upgrade rear-end visibility, highway safety, and installation flexibility with the Truck-Lite 60356R 60 Series Red Oval LED Stop/Turn/Tail Light. Specially designed with an ultra-shallow curved lens profile, this 18-diode LED signal lamp is engineered for flush-mount applications where rear clearance and depth space are at a premium—making it ideal for box trucks, utility bodies, and vehicles equipped with hydraulic liftgates.
Framed in an integrated high-impact black flange mount, the 60356R delivers a clean, low-profile appearance. Equipped with an industry-standard PL-3 connection and a fully sealed polycarbonate lens and body, it provides superior resistance against weather, road grime, water ingress, and severe vibration.
The Truck-Lite 60356R combines triple-function S/T/T operation in a compact, durable package. Designed for standard 12V vehicle electrical systems, it draws minimal amperage—0.36 Amps (Major) for stop and turn functions and 0.07 Amps (Minor) for tail lights—reducing overall electrical load on the vehicle's charging system.
Backed by Truck-Lite's 3-Year Warranty, the 60356R provides fleet owners and operators with dependable, long-term service under tough commercial operating conditions.
