SKU
6053
Manufactures SKU
TRUCK-LITE 6053

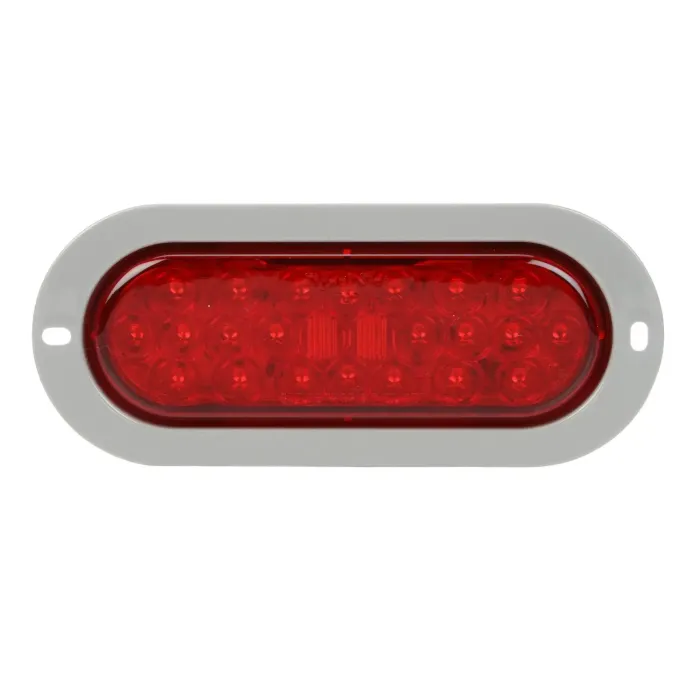

Signal-Stat - LED - Red - Oval - 24 Diode - Stop/Turn/Tail - Gray Flange - PL-3 - 12V
$24.00
EA
Signal-Stat - LED - Red - Oval - 24 Diode - S/T/T - Gray Flange - PL-3 - 12V
Features & Benefits
Housing and flange are molded together to form one piece - Uses standard right angle PL-3 connection Designed with impact-resistant polycarbonate material LEDs do not have a filament - therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb - Epoxy-encapsulated electronics prevents damage from moisture and corrosion - When properly mounted - exceeds FMVSS DOT requirements for S/T/T and F/P/ - Truck-Lite 2-Year Limited Warranty
Brand
Signal-Stat
Common Size
2 x 6
Current Major Amp
0.26
Current Minor Amp
0.02
Housing Material
Polycarbonate
KIT
No
Lamp Connection
PL-3
Lens Color
Red
Lens Height
2.49
Lens Material
Polycarbonate
Lens Shape
Oval
Lens Width
6.75
Lighting Technology
LED
Mount Type
Flange Mount
Mount/Trim Color
Gray
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
2.5 x 6.75
Number of Diodes/Bulbs
24
Product Type
Stop/Turn/Tail
Sealed/Bulb Replaceable
Sealed
Series
Signal-Stat
Voltage
12
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
P2 | I6 | S2 | T
UPC
0735111172932
UNSPSC
25172900
VMRS
034-002-013
Warranty
2-Year
Shipping Weight (lbs)
0.560000
Total Height
3.31
Total Width
7.87
