SKU
6053A
Manufactures SKU
TRUCK-LITE 6053A

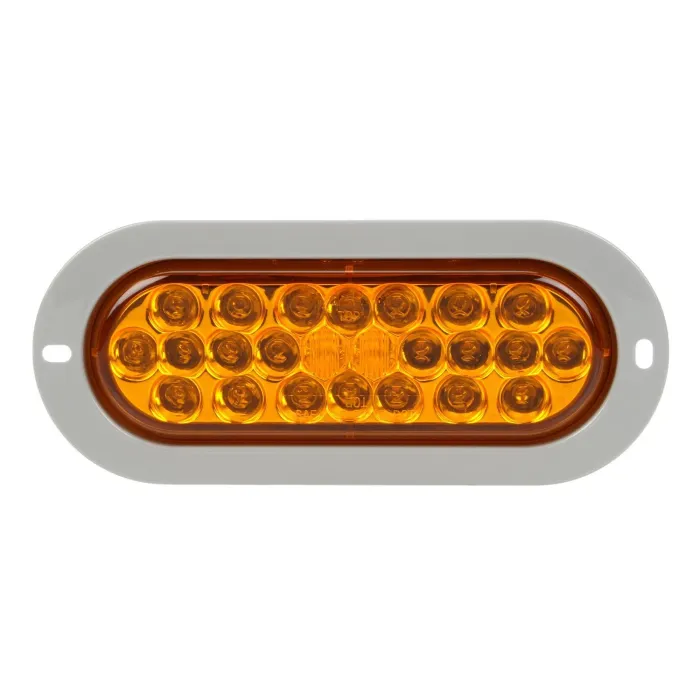

Signal-Stat - LED - Yellow Oval - 24 Diode - Front/Park/Turn - Gray Polycarbonate - Flange - 12V - PL-3
$25.95
EA
Signal-Stat - LED - 24 Diode - Oval - F/P/T - Gray Flange - 12V
Features & Benefits
Housing and flange are molded together to form one piece - Uses standard right angle PL-3 connection - Designed with impact-resistant polycarbonate material - LEDs do not have a filament - therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb - Epoxy-encapsulated electronics prevents damage from moisture and corrosion - When properly mounted - exceeds FMVSS DOT requirements for S/T/T and F/P/T - Lamps come with Truck-Lite 2-Year Limited Warranty
Brand
Signal-Stat
Common Size
2 x 6
Current Major Amp
0.38
Current Minor Amp
0.03
Housing Material
Polycarbonate
KIT
No
Lamp Connection
PL-3
Lens Color
Yellow
Lens Height
2.49
Lens Material
Polycarbonate
Lens Shape
Oval
Lens Width
6.75
Lighting Technology
LED
Mount Type
Flange Mount
Mount/Trim Color
Gray
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
2.5 x 6.75
Number of Diodes/Bulbs
24
Product Type
Front/Park/Turn
Sealed/Bulb Replaceable
Sealed
Series
Signal-Stat
Voltage
12
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
I6 | P | P2
UPC
0735111189756
UNSPSC
25172900
VMRS
034-003-057
Warranty
2-Year
Shipping Weight (lbs)
0.560000
Total Height
3.31
Total Width
7.87
