SKU
60554R
Manufactures SKU
TRUCK-LITE 60554R

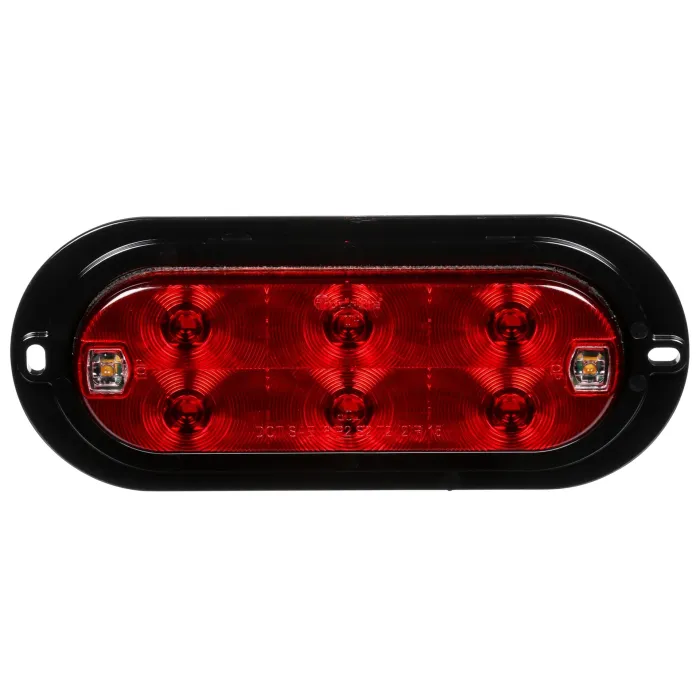

60 Series - LED - Red/Clear Oval 8 Diode Stop/Turn/Tail & Back-Up - Black Surface Mount - Hardwired - Fit 'N Forget S.S. - 12V
$91.59
EA
60 Series - LED Red/Clear Oval 8 Diode Stop/Turn/Tail - Black Surface Mount - Hardwired - Fit 'N Forget S.S. - 12V
Features & Benefits
Offers the same safety and low maintenance benefits of existing LED S/T/T and BU lights now in one package - Not orientation dependent; complies with FMVSS 108 vertically or horizontally - Save space in inventory - Lower cost system - The new combination lamps are the same size as existing Truck-Lite Model 60 lights - which means they fit into existing mounting holes - Limited lifetime warranty
Brand
TRUCK-LITE
Common Size
2 x 6
Current Major Amp
0.24
Current Minor Amp
0.02
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Red | Clear
Lens Height
2.1
Lens Material
Polycarbonate
Lens Shape
Oval
Lens Width
6.32
Lighting Technology
LED
Mount Type
Surface Mount
Mount/Trim Color
Black
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
2.5 x 6.5
Number of Diodes/Bulbs
8
Number of Wires
4
Product Type
Stop/Turn/Tail & Back-Up
Sealed/Bulb Replaceable
Sealed
Series
60 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
I6 | P2 | T | R | S2
UPC
0735111196587
UNSPSC
25172900
VMRS
034-002-013
Warranty
Lifetime
Shipping Weight (lbs)
0.490000
Total Height
3.32
Total Width
7.87
