2-in-1 Multifunction Combination: Combines Stop/Turn/Tail and Back-Up light functions into one unit, eliminating the need for separate backup light cutouts.
-
Orientation Independent Design: Fully compliant with FMVSS 108 standards whether mounted vertically or horizontally, giving you maximum mounting flexibility on any truck body or trailer.
-
Heavy-Duty Polycarbonate Construction: Features an impact-resistant red/clear polycarbonate lens fused to a durable black polycarbonate housing for total sealed weather resistance.
-
Fit 'N Forget S.S. Hardwired Connection: Built with 4-wire hardwired leads and Fit 'N Forget technology to protect connections against moisture, corrosion, and vibration.
-
Standard 60 Series Fitment: Directly fits standard 2" x 6" oval mounting cutouts for seamless upgrade or replacement.
-
DOT & SAE Certified: Fully compliant with I6, P2, T, R, and S2 standards under FMVSS 108 and CMVSS 108 regulations.
SKU
60559R
Manufactures SKU
TRUCK-LITE 60559R

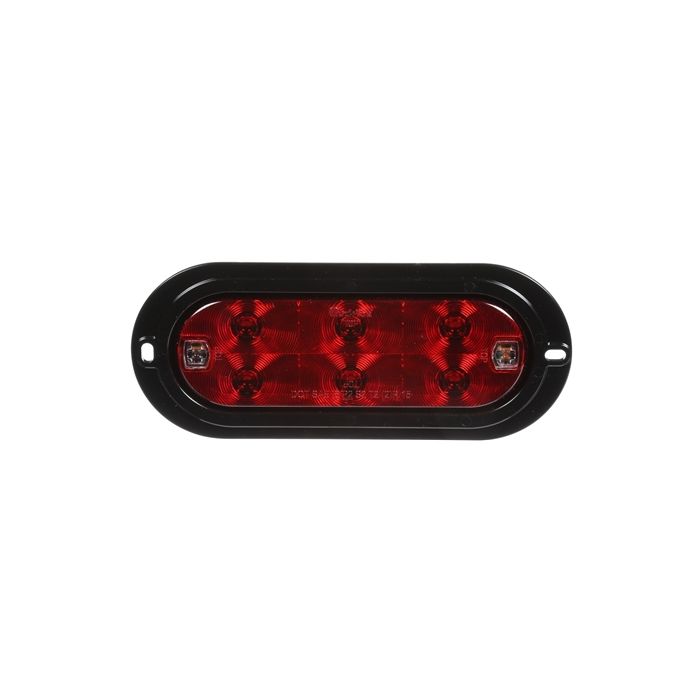

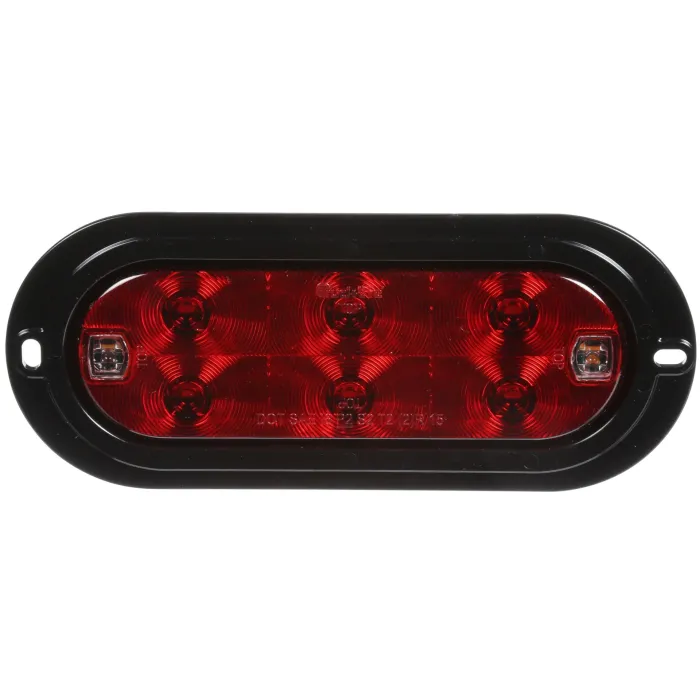

Truck-Lite 60559R – 60 Series LED 2"x6" Oval 8-Diode Stop/Turn/Tail & Integrated Back-Up Light (Red/Clear Lens, Black Flush Mount)
$76.45
EA
Upgrade your commercial vehicle, truck, or trailer with the innovative Truck-Lite 60559R 60 Series LED Oval Light. Designed as an all-in-one safety signaling solution, this 8-diode combination lamp merges Stop/Turn/Tail (S/T/T) and Back-Up (BU) functions into a single, compact housing.
Because it retains the standard 2" x 6" 60 Series footprint, the 60559R easily retrofits into existing mounting cutouts—allowing you to reduce vehicle installation points, save space in your inventory, and lower total maintenance costs without compromising visibility or safety.
Key Details
Brand
TRUCK-LITE
Common Size
2 x 6
Current Major Amp
0.24
Current Minor Amp
0.02
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Red | Clear
Lens Height
2.1
Lens Material
Polycarbonate
Lens Shape
Oval
Lens Width
6.32
Lighting Technology
LED
Mount Type
Flush Mount
Mount/Trim Color
Black
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
2.5 x 6.5
Number of Diodes/Bulbs
8
Number of Wires
4
Product Type
Stop/Turn/Tail & Back-Up
Sealed/Bulb Replaceable
Sealed
Series
60 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
I6 | P2 | T | R | S2
UPC
0735111196594
UNSPSC
25172900
VMRS
034-002-013
Warranty
Lifetime
Shipping Weight (lbs)
0.490000
Total Height
3.32
Total Width
7.87
