SKU
6063C
Manufactures SKU
TRUCK-LITE 6063C

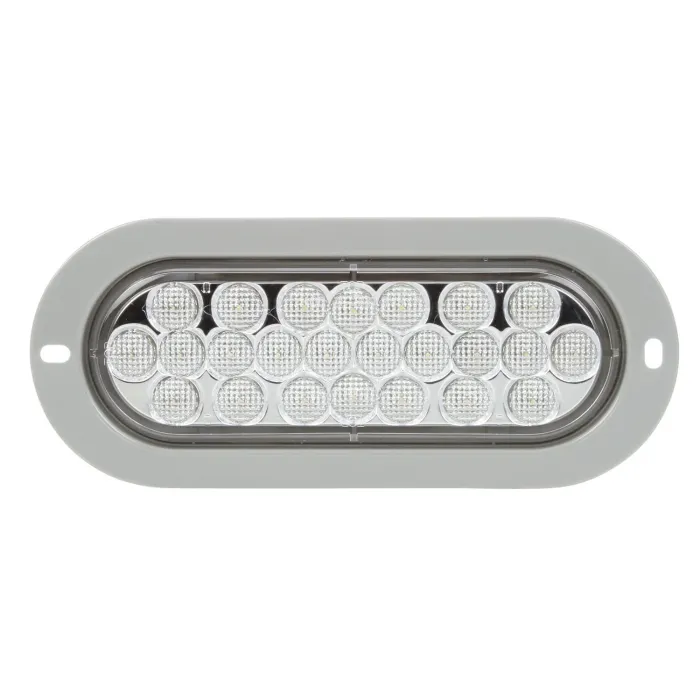

Signal-Stat - LED - Clear Oval - 24 Diode - Back-Up Light - Gray Flange - PL-2 - 12V
$62.89
EA
Signal-Stat - LED - 24 Diode - Oval - Back-Up Light - Gray Flange - 12V
Features & Benefits
Housing and flange are molded together to form one piece - Uses standard right angle PL-2 connection - When properly mounted - exceeds FMVSS DOT requirements for back-up - Unique LED array displays full pattern light output design - Must be used as a two-lamp system for back-up - Designed with impact-resistant polycarbonate - LEDs do not have a filament - therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb - Epoxy-encapsulated electronics prevents damage from moisture and corrosion - 6063 can be legally mounted horizontally or vertically - Lamp comes with Truck-Lite 2-Year Limited Warranty
Brand
Signal-Stat
Common Size
2 x 6
Current Amp
0.15
Housing Material
Polycarbonate
KIT
No
Lamp Connection
PL-2
Lens Color
Clear
Lens Height
2.5
Lens Material
Polycarbonate
Lens Shape
Oval
Lens Width
6
Lighting Technology
LED
Mount Type
Flange Mount
Mount/Trim Color
Gray
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
2.5x7
Number of Diodes/Bulbs
24
Product Type
Back-Up Light
Sealed/Bulb Replaceable
Sealed
Series
Signal-Stat
Voltage
12
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
R
UPC
0735111189770
UNSPSC
25172900
VMRS
034-003-074
Warranty
2-Year
Shipping Weight (lbs)
0.560000
Total Height
3.31
Total Width
7.87
