SKU
6810A
Manufactures SKU
TRUCK-LITE 6810A

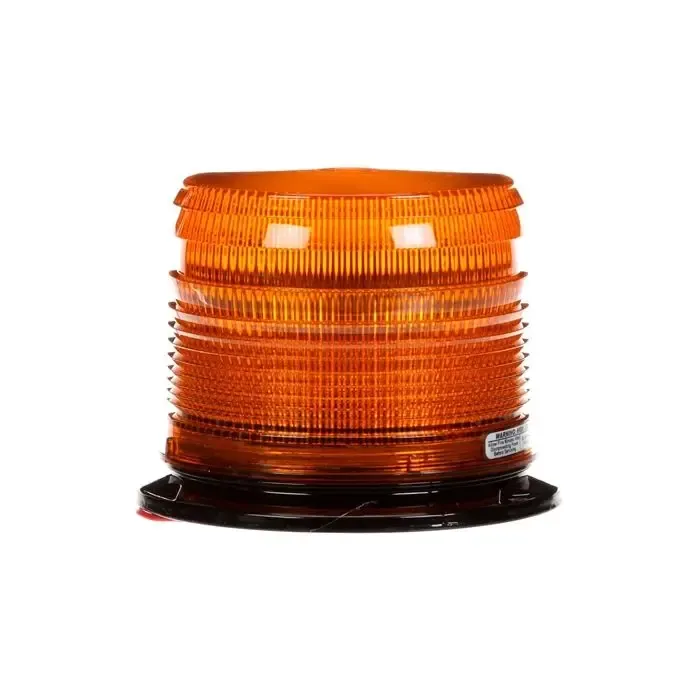

Signal-Stat - Gas Discharge - Low Profile Beacon - Yellow - Permanent Mount/Pipe Mount - Class I - Hardwired - Stripped End - 12-24V
$562.48
EA
Signal-Stat - Gas Discharge - Low Profile Beacon - Yellow - Permanent/Pipe Mount - 12-24V
Features & Benefits
Multi-Flash Class 1 and 2 Gas Discharge Strobe - Field-selectable flash patterns via internal jumper single - double - quad flash - LED diagnostic indicator - New improved product features twist on/off lens - Electronics sealed in epoxy for increased weather and shock resistance
Beacon Frequency
65 | 80
Brand
Signal-Stat
Current Amp
0.5
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
4.13
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
5.5
Lighting Technology
Gas Discharge
Mount Type
Permanent Mount | Pipe Mount
Mount/Trim Color
Black
Mount/Trim Material
Steel
Mounting Connector Diameter
.20 | 1
Number of Diodes/Bulbs
1
Number of Flash Patterns
2
Number of Wires
2
Product Type
Beacon
Profile
Low Profile
Rotating/Strobe
Strobe
Sealed/Bulb Replaceable
Bulb Replaceable
Selectable Flash Patterns
Yes
Series
Signal-Stat
Voltage
12 | 24
Wire Gauge
18
Compliance Family
SAE
Standards Met
J575 | J576 | J577 | J578 | J759 | J1318
UPC
0735111173229
UNSPSC
39111706
VMRS
034-006-028
Warning Class
I
Warranty
1-Year
Shipping Weight (lbs)
2.100000
Total Height
4.95
Total Width
6.41
