SKU
70330R
Manufactures SKU
TRUCK-LITE 70330R

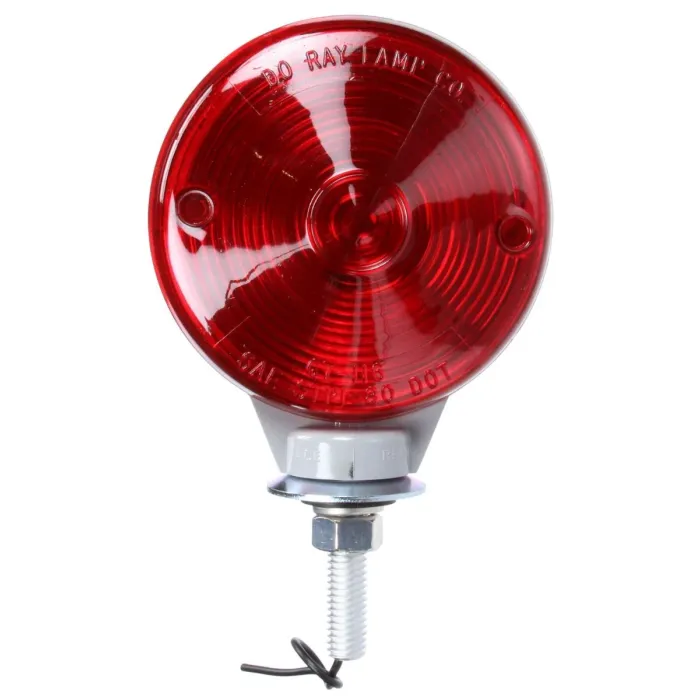

LAMP PED MOUNT T/S SGL FACE
$13.13
EA
LAMP PED MOUNT T/S SGL FACE
Features & Benefits
Available as single or dual face lamps - Dual face lamp mounts on a 3/8"-24 stud - Single face lamp mounts on a 7/16" -14 stud - Features snap-in lens - LED Upgrade options available #2751 - 2751A and 2750
Brand
TRUCK-LITE
Common Size
4
Current Major Amp
2.1
Housing Color
Gray
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
4.22
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
4.22
Lighting Technology
Incandescent
Mount Type
1 Stud Mount
Mounting Connector Diameter
0.438
Mounting Orientation
Universal
Number of Diodes/Bulbs
1
Number of Faces
Single Face
Number of Wires
1
Position
Universal
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Bulb Replaceable
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
I6
UPC
0735111022107
UNSPSC
25172900
VMRS
034-003-071
Warranty
1-Year
Shipping Weight (lbs)
0.420000
Total Height
3.994
Total Width
3.994
