SKU
80342
Manufactures SKU
TRUCK-LITE 80342

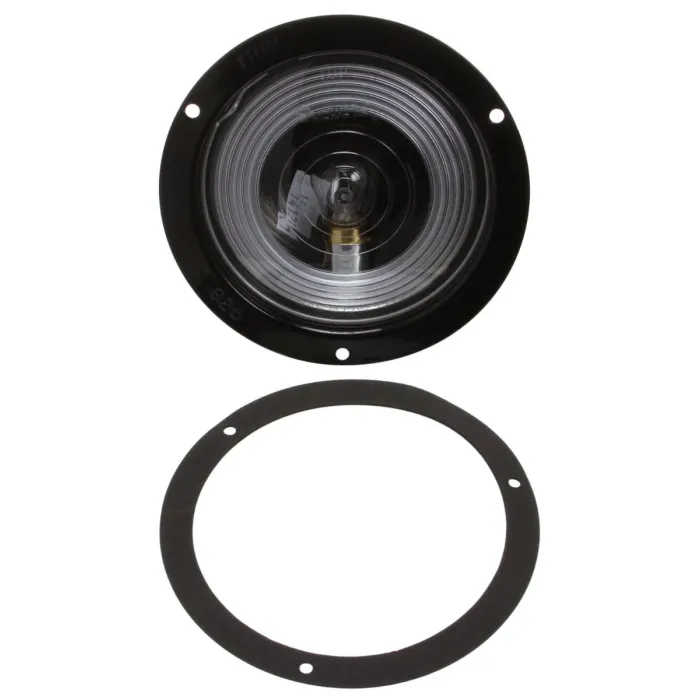

80 Series - Incandescent - Clear Round - 1 Bulb - Back-Up Light - Black Flange Mount - Hardwired - Blunt Cut - 12V
$16.80
EA
80 Series - Incan. - 1 Bulb - Round - Back-Up Light - Black Flange - 12V
Features & Benefits
Features flush mount housing with recessed lens - Snap-in retaining ring holds lens in place - Available in three finishes - black painted steel - stainless steel or polished stainless steel - Model 80342 requires two lamps to meet federal lighting regulations - Replaces Signal-Stat 4111W - Upgrade to LED Lighting Systems using Truck-Lite's Super 44 Series products
Brand
TRUCK-LITE
Common Size
4
Current Amp
2.1
Housing Material
Steel
KIT
No
Lamp Connection
Hardwired
Lens Color
Clear
Lens Height
3.9
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
3.9
Lighting Technology
Incandescent
Mount Type
Flange Mount
Mount/Trim Color
Black
Mount/Trim Material
Stainless Steel
Mounting Connector Diameter
0.2
Number of Diodes/Bulbs
1
Number of Wires
1
Product Type
Back-Up Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
80 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
R
UPC
0735111025283
UNSPSC
25172900
VMRS
034-003-074
Warranty
1-Year
Shipping Weight (lbs)
0.700000
Total Height
5.28
Total Width
5.28
