3-in-1 Signal Functionality: Performs Stop, Turn, and Tail (S/T/T) functions in a compact 4.25" round design.
-
Rugged Steel Housing: Durable black-finished steel bracket mount protects against corrosion, impacts, and vibration.
-
Bulb-Replaceable Design: Features a serviceable single incandescent bulb configuration with dual screws for easy lens removal and maintenance.
-
Universal 2-Stud Mounting: Equipped with standard 1/4"-20 threaded studs spaced 2 inches apart for easy bracket or surface mounting.
-
Direct Hardwire Lead: Includes a 2-wire hardwired connection with stripped wire ends for reliable 12V electrical connections.
-
DOT & SAE Certified: Meets FMVSS 108 and CMVSS 108 regulations (S, T, I) for legal street use.
SKU
80462R
Manufactures SKU
TRUCK-LITE 80462R

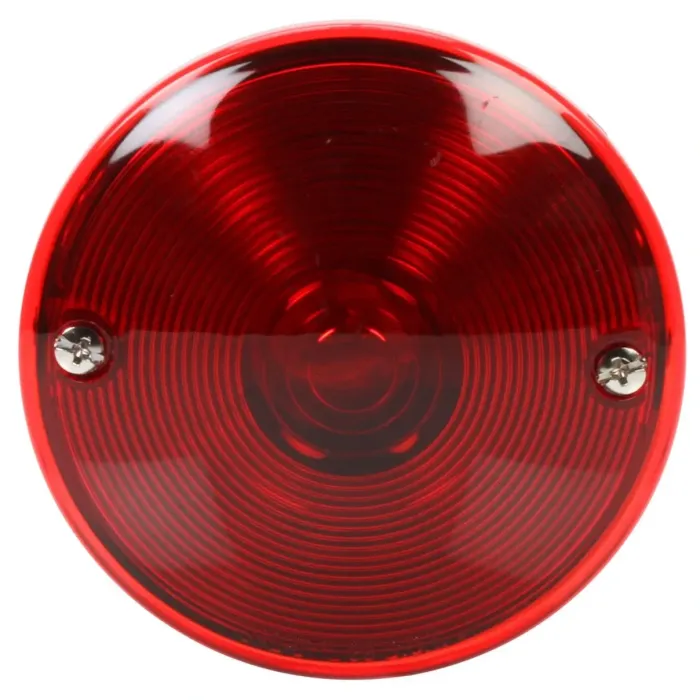

Truck-Lite 80462R – 80 Series 4.25" Round Incandescent Red Stop/Turn/Tail Light (12V, Black Steel Bracket Mount, Hardwired Stripped Wire End)
$13.03
EA
Ensure maximum highway visibility and safety with the Truck-Lite 80462R 80 Series Stop/Turn/Tail Light. Purpose-built for heavy-duty commercial trucks, trailers, and utility vehicles, this 4.25-inch round incandescent lamp provides reliable stop, turn, and tail signaling in a single, durable housing.
Featuring a robust black powder-coated steel mounting bracket and an impact-resistant red acrylic lens, the Truck-Lite 80462R stands up to demanding road environments. Its bulb-replaceable internal design with dual lens-securing screws allows for easy, cost-effective maintenance without replacing the entire assembly. Equipped with a standard 2-stud mount configuration (1/4"-20 studs) and a hardwired 2-wire connection with stripped leads, installation onto standard 12V electrical systems is quick and secure.
Fully certified to meet FMVSS 108, CMVSS 108, DOT, and SAE standards, the Truck-Lite 80462R delivers reliable performance for commercial fleets, utility trailers, and agricultural machinery available at TruckLightParts.com.
Ideal Applications
-
Commercial Heavy-Duty & Medium-Duty Trucks
-
Flatbed, Utility, Box, and Cargo Trailers
-
Agricultural Equipment & Construction Machinery
-
Fleet Replacement & Maintenance Applications
Key Details
Brand
TRUCK-LITE
Common Size
4
Current Major Amp
2.25
Current Minor Amp
1.44
KIT
No
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
4.25
Lens Material
Acrylic
Lens Shape
Round
Lens Width
4.25
Lighting Technology
Incandescent
Mount Type
2 Stud Mount
Mount/Trim Color
Black
Mount/Trim Material
Steel
Mounting Connector Diameter
0.25
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
Stop/Turn/Tail
Sealed/Bulb Replaceable
Bulb Replaceable
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
S | T | I
UPC
0735111071860
UNSPSC
25172900
VMRS
034-002-013
Warranty
1-Year
Shipping Weight (lbs)
0.450000
Total Height
4.25
Total Width
4.25
