Superior Illumination: 6 high-intensity LEDs output 1,984 raw lumens of whiter, clearer, and more natural light than standard halogen/incandescent lamps.
-
Vibration & Shock Resistant: Solid-state LED technology eliminates fragile filaments, ensuring reliable performance on rough terrain.
-
Multivolt Capability: Compatible with both 12V and 24V vehicle electrical systems.
-
Energy Efficient: Low amp draw preserves battery power and extends alternator life.
-
Weather & Corrosion Proof: Rugged die-cast aluminum housing coated in a black powder finish paired with stainless steel hardware prevents rust and corrosion.
-
Easy Installation: Hardwired blunt-cut/stripped-end 2-wire leads with a single 5/16"-18 stud mount make mounting quick and versatile.
SKU
8109D
Manufactures SKU
TRUCK-LITE 8109D

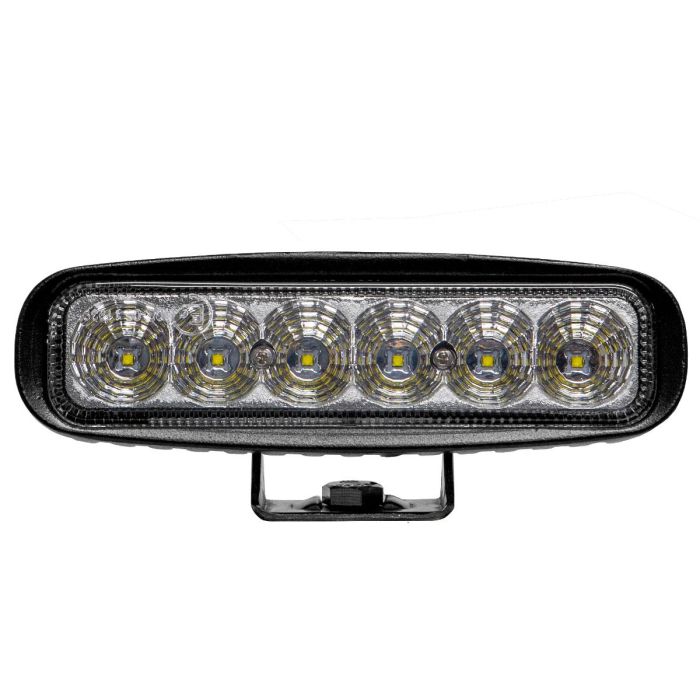

Truck-Lite 8109D – Signal-Stat Rectangular LED Work Light (6-Diode, 1984 Lumens, Multivolt, Stripped End)
$65.98
EA
Illuminate your job site and heavy-duty vehicles with the Truck-Lite 8109D Signal-Stat Rectangular LED Work Light. Designed to withstand harsh environments, this high-output work lamp delivers 1,984 raw lumens of bright, white light with a broad general-purpose work pattern, making nighttime operations safer and far more efficient.
Equipped with 6 high-efficiency diodes and a solid-state LED design (no filaments to break), the Truck-Lite 8109 provides superior resistance to shock, impact, and extreme equipment vibrations. Its multivolt functionality allows seamless operation across both 12V and 24V systems while drawing significantly less current than traditional incandescent lamps—reducing strain on your battery and alternator.
Housed in a durable black powder-coated die-cast aluminum frame with a shatter-resistant polycarbonate lens, this work light is built to perform for the long haul.
Ideal Applications:
Perfect for utility trucks, commercial freight vehicles, tow trucks, agricultural machinery, construction equipment, trailers, and off-road vehicles where reliable, heavy-duty illumination is required.
Key Details
Beam Pattern
Work
Brand
Signal-Stat
Current Amp
2.5
Current Major Amp
24V/1.25A
Current Minor Amp
12V/2.5A
Housing Color
Black
Housing Material
Die-Cast Aluminum
Lamp Connection
Hardwired
Lens Color
Clear
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lighting Technology
LED
Lumens
1900
Mount Material
Stainless Steel
Mount Type
1 Stud Mount
Mounting Connector Diameter
0.3125
Number of Diodes/Bulbs
6
Number of Wires
2
Plug Side One
Hardwired
Plug Side Two
Blunt Cut
Sealed/Bulb Replaceable
Sealed
Shipping Weight (lbs)
1.110000
Total Height
3.06
