Directional Arrow Signal Protection: Integrated arrow pattern clearly indicates turning movement to surrounding traffic, significantly increasing safety for buses and emergency vehicles.
-
Serviceable Bulb-Replaceable Design: Features a removable single-bulb housing for quick, cost-effective maintenance without replacing the entire light assembly.
-
Heavy-Duty Construction: Built with a durable painted steel housing and a impact-resistant acrylic yellow lens designed to withstand harsh weather and road vibration.
-
Secure Surface Mount: Mounts flush with four #10 screws on a 6.25-inch bolt circle (requires a 1" diameter, 1" deep wire access hole).
-
Direct Hardwired Installation: Pre-wired with a 12V single-wire hardwired lead featuring a stripped wire end for fast splice integration into your vehicle harness.
-
Industry Compliance & Direct Replacement: Meets FMVSS 108, CMVSS 108, DOT, and SAE standards; directly replaces Signal-Stat 6505/A models.
SKU
90325Y
Manufactures SKU
TRUCK-LITE 90325Y

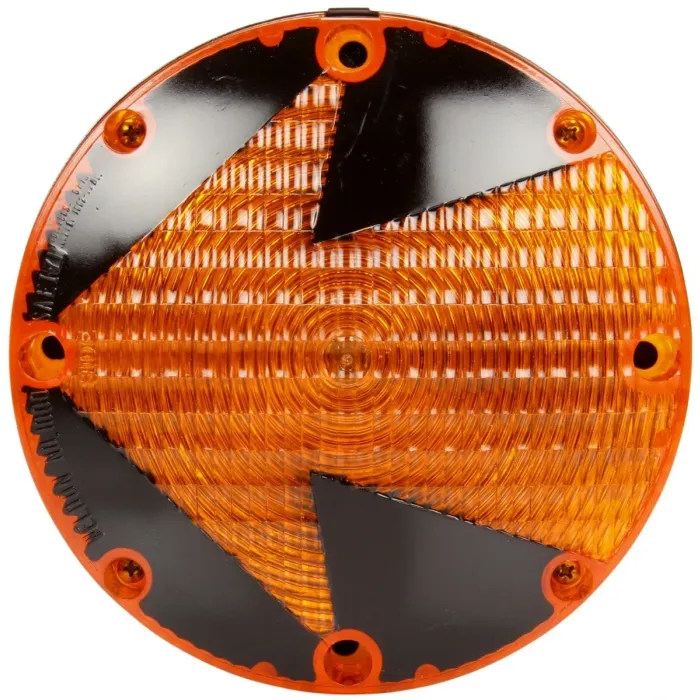

Truck-Lite 90325Y 90 Series 6" Round Yellow Incandescent Auxiliary Turn Signal Lamp Kit with Directional Arrow (12V, 4-Screw Surface Mount, Hardwired Stripped End)
$83.53
EA
Ensure exceptional visual warnings and directional clarity on commercial fleets with the Truck-Lite 90325Y 90 Series Round Yellow Auxiliary Turn Signal Light Kit. Widely trusted across school buses, transit vehicles, and emergency service trucks, this 6-inch round yellow signal lamp features an integrated directional arrow pattern for enhanced turn indication. Built with a rugged steel housing and a high-impact acrylic lens, it surface mounts easily using a 4-screw pattern on a 6.25" bolt circle. Equipped with a bulb-replaceable incandescent assembly and hardwired leads with stripped wire ends, this 12V kit provides an easy-to-service, durable turn signal solution for heavy-duty applications.
Key Details
Brand
TRUCK-LITE
Common Size
6
Current Major Amp
2.1
Current Minor Amp
0.5
Housing Material
Steel
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
6.25
Lens Material
Acrylic
Lens Shape
Round
Lens Width
6.25
Lighting Technology
Incandescent
Mount Type
4 Screw
Number of Diodes/Bulbs
1
Number of Wires
1
Position
Auxiliary
Product Type
Turn Signal
Sealed/Bulb Replaceable
Bulb Replaceable
Series
90 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
UPC
0735111031499
UNSPSC
25172900
VMRS
034-003-071
Warranty
1-Year
Shipping Weight (lbs)
1.090000
Total Height
7.12
Total Width
7.12
