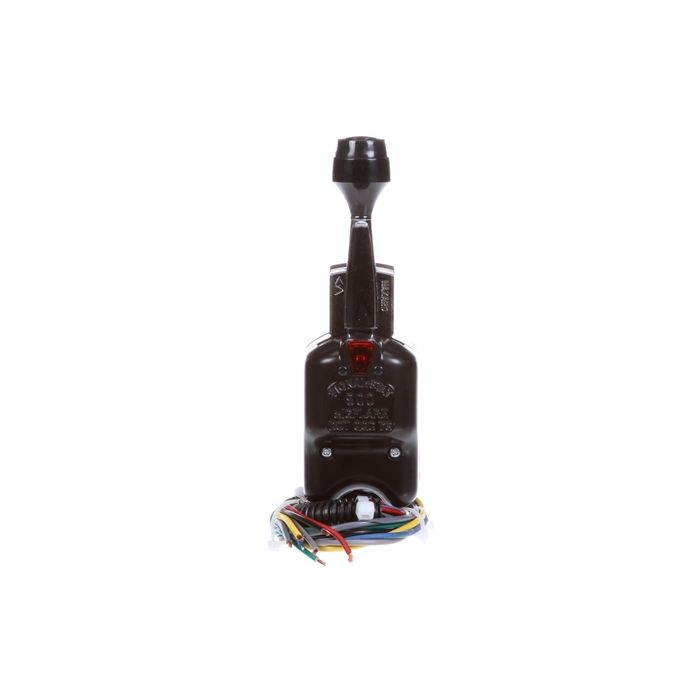

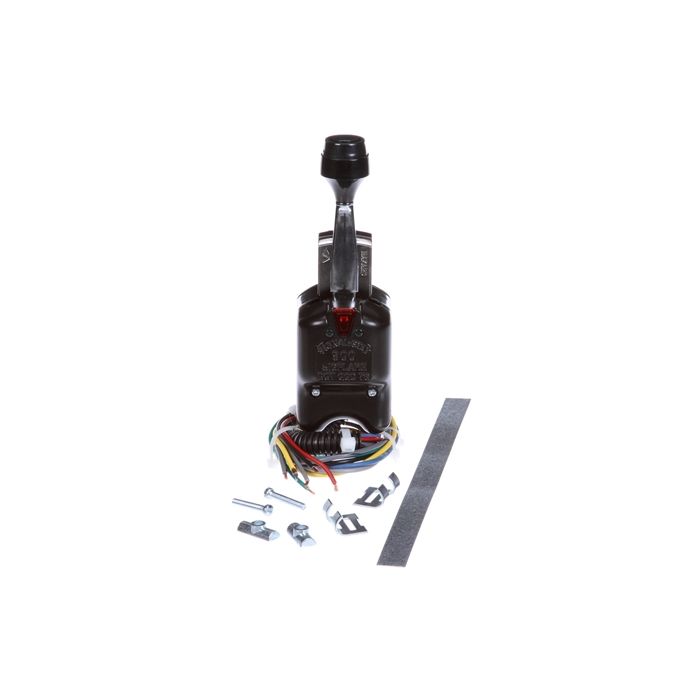

Truck-Lite 910 Signal-Stat Heavy Load Turn Signal Switch – 7-Wire Harness, Black Zinc
Heavy-Duty Performance for Demanding Hauls
The Truck-Lite 910 Signal-Stat Turn Signal Switch is the industry standard for high-capacity vehicles. Engineered for "Heavy Load" applications, this switch is specifically recommended for trucks pulling double or triple trailers and vehicles that require prolonged hazard lamp usage. Its rugged black zinc housing ensures long-lasting durability in the harshest environments.
Advanced Wiring & Versatility
Equipped with a 7-wire harness and a 16-gauge wire construction, the 910 model offers a hardwired connection with stripped ends for a secure installation. It features an integrated pilot light to provide clear visual feedback for both turn signals and hazard warnings.
Superior Capacity
Designed to handle significant electrical loads, this switch supports:
-
Hazard Warning: Up to 16 bulb capacity.
-
Turn Signal Flashing: Up to 8 bulbs per side.
Key Features & Specifications:
-
Brand: Signal-Stat (by Truck-Lite)
-
Housing Material: Durable Zinc with a Black finish
-
Connection: Hardwired with Stripped Ends (Plug Side Two)
-
Wire Gauge: 16 AWG
-
Compatibility: Optimized for 12V and 24V systems
-
Dimensions: 7.25" Width x 2.13" Height x 2.88" Depth
-
Warranty: 1-Year Truck-Lite Warranty
-
Cross References: Grote 48272, 48072; Ford FOHT13B302AB
Note: Flasher units (252, 183D, or 283) are required based on bulb count and are sold separately.
