SKU
91002R
Manufactures SKU
TRUCK-LITE 91002R

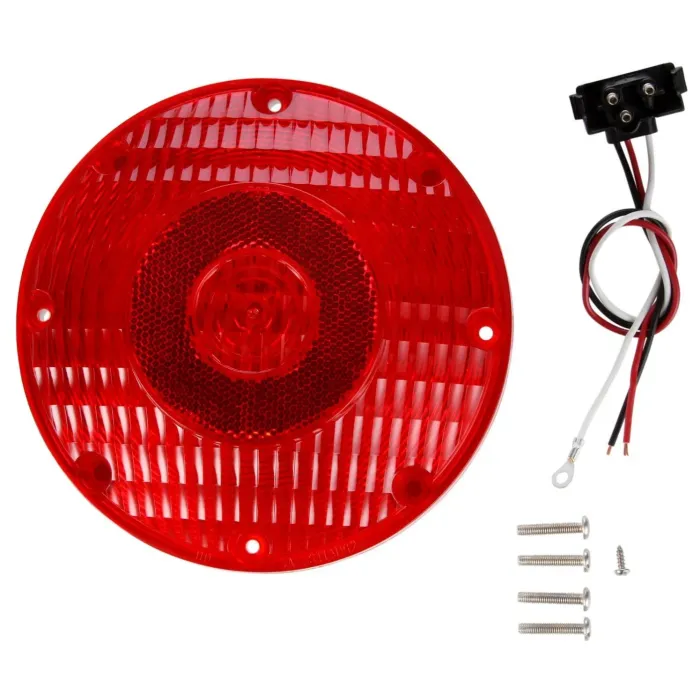

91 Series - Incandescent - Red - Round - 1 Bulb - Stop/Turn/Tail - 4 Screw - PL-3 - Stripped End/Ring Terminal - 12V - Kit
$28.49
EA
91 Series - Incan. - Red - Round - 1 Bulb - S/T/T - 4 Screw - PL-3 - Stripped/Ring - 12V - Kit
Features & Benefits
Contains a heavy duty shock mount 12V dual filament bulb - Mounting gasket provides additional protection between lamp and body - Mounts in a 5375" hole
Brand
TRUCK-LITE
Common Size
7
Current Major Amp
2.1
Current Minor Amp
0.48
KIT
Yes
Lamp Connection
PL-3
Lens Color
Red
Lens Height
7.02
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
7.02
Lighting Technology
Incandescent
Mount Type
4 Screw
Mounting Connector Diameter
0.2
Number of Diodes/Bulbs
1
Number of Wires
1
Product Type
Stop/Turn/Tail
Sealed/Bulb Replaceable
Sealed
Series
91 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
S | T | I | A | P
UPC
0735111031567
UNSPSC
25172900
VMRS
034-002-013
Warranty
1-Year
Shipping Weight (lbs)
1.030000
Total Height
7.02
Total Width
7.02
