SKU
91315R
Manufactures SKU
TRUCK-LITE 91315R

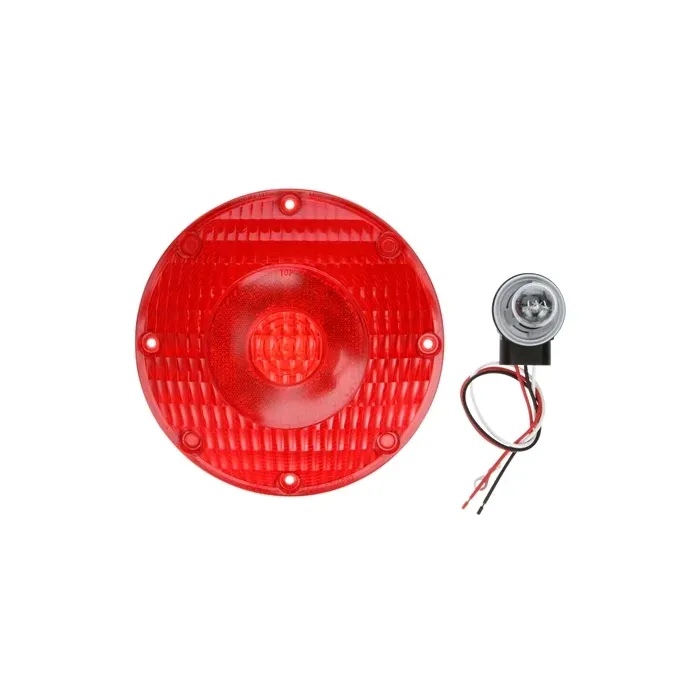

91 Series Incandescent Reflectorized - Red - Round - 1 Bulb - Stop/Turn/Tail - 4 Screw - Hardwired - Stripped End/Ring Terminal - 12V
$31.66
EA
91 Series Incan. Reflectorized - Red - Round - 1 Bulb - S/T/T - 4 Screw - Hardwired - Stripped/Ring - 12V
**Discontinued - Available While Supply Lasts
Features & Benefits
Mounting gasket provides additional protection between lamp and body - Mounts in a 384" hole
Brand
TRUCK-LITE
Common Size
7
Current Major Amp
2.1
Current Minor Amp
0.48
KIT
No
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
7
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
7
Lighting Technology
Incandescent
Mount Type
4 Screw
Mounting Connector Diameter
0.23
Number of Diodes/Bulbs
1
Number of Wires
3
Product Type
Stop/Turn/Tail
Sealed/Bulb Replaceable
Sealed
Series
91 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
S | T | I | A | P
UPC
0735111097129
UNSPSC
25172900
VMRS
034-002-013
Warranty
1-Year
Shipping Weight (lbs)
0.800000
Total Height
7
Total Width
7
