SKU
92566Y
Manufactures SKU
TRUCK-LITE 92566Y

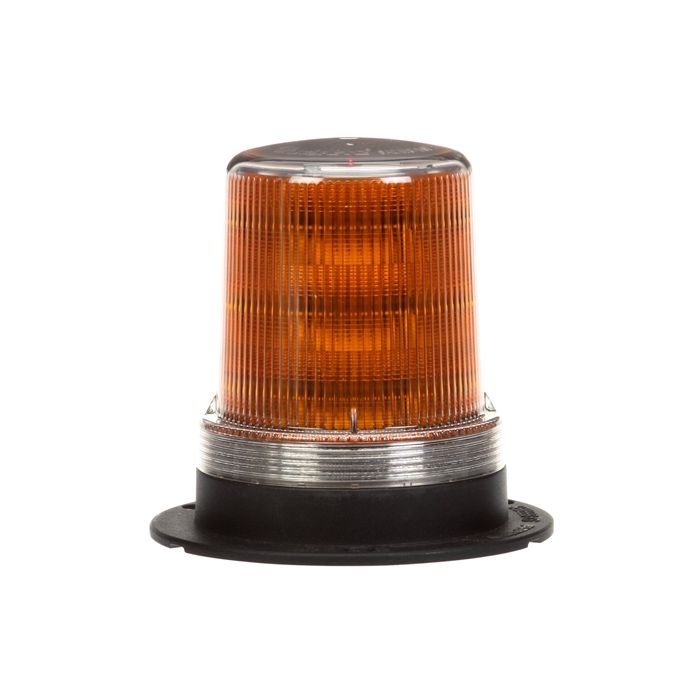

LED - Medium Profile Beacon - Clear/Yellow - Permanent Mount/Pipe Mount - Class I - Hardwired - Stripped End - 12V
$330.13
EA
LED - Medium Profile Beacon - Clear/Yellow - Permanent/Pipe Mount - 12V
Features & Benefits
Developed through Truck-Lite experience in both LED Design and Heavy-Duty Warning Lighting Systems Design - Optics designed specifically for LED technology - not as a gaseous discharge retrofit - Additional color options excellent option for City/County Municipal - Cement Mixer - and other Heavy-Duty - Construction or Off-Road Applications - Dual and Quad Class I flash patterns meet legal functions - Rugged black powder coated corrosion-resistant die-cast aluminum base - Designed for Surface Mount as well as Pipe Mount (1NPT pipe thread) - Electronics and Light Source are fully encapsulated in epoxy to protect components from moisture damage and corrosives - Protected against industry-standard electrical transient per SAE J1455 - Linear supply offers reduced EMI over that of gaseous discharge systems - Threaded-lens design does not require tool to replace lens - Designed without external optics to reduce maintenance and cleaning - Mounting gasket and #10 installation screws included - Magnetic Mount version features neodymium magnet - the strongest type of magnet - featuring up to 120 pounds of magnetic pull - Magnetic Mount constructed of high-quality aluminum covered in a protective rubber - featuring neodymium magnets with up to 120 pounds of magnetic pull - Magnetic Mount includes rubber suction material for extra insurance - reducing any risk of separation of light from contact surface - Cigarette Plug features On/Off switch with LED indicator light - 5-Year Warranty
Brand
TRUCK-LITE
Current Amp
2.6
Housing Material
Aluminum
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow | Clear
Lens Height
5.5
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
4.95
Lighting Technology
LED
Mount Type
Permanent Mount | Pipe Mount
Mount/Trim Color
Black
Mount/Trim Material
Aluminum
Mounting Connector Diameter
.296 | 1
Number of Diodes/Bulbs
18
Number of Wires
3
Product Type
Beacon
Profile
Medium Profile
Rotating/Strobe
Strobe
Sealed/Bulb Replaceable
Sealed
Selectable Flash Patterns
No
Voltage
12
Wire Gauge
18
Compliance Family
EMI | SAE
Standards Met
J845 | J1455
UPC
0735111170761
UNSPSC
39111706
VMRS
034-006-004
Warning Class
I
Warranty
5-Year
Shipping Weight (lbs)
4.670000
Total Height
6.83
Total Width
6.82
