SKU
92568Y
Manufactures SKU
TRUCK-LITE 92568Y

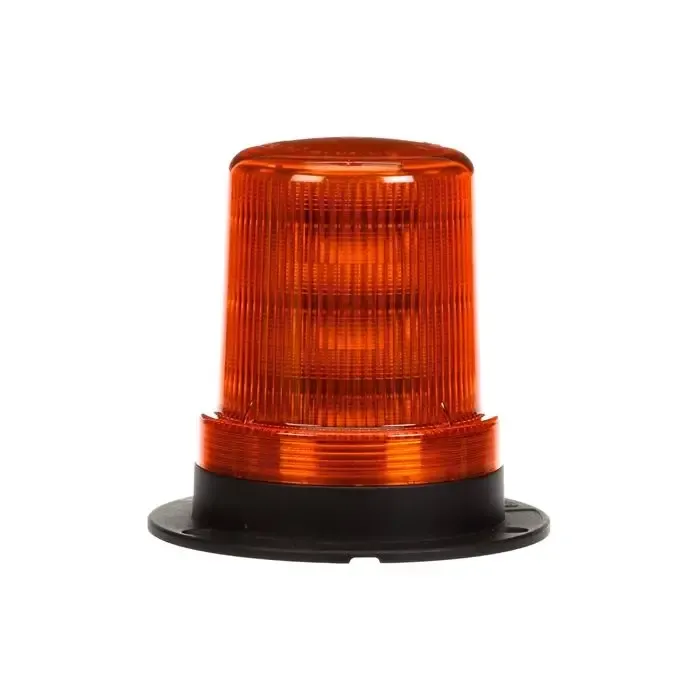

LED - Medium Profile Beacon - Yellow - Permanent Mount/Pipe Mount - Class I - Hardwired - Stripped End - 24V
$422.51
EA
LED - Medium Profile Beacon - Yellow - Permanent/Pipe Mount - 24V
Features & Benefits
Developed through Truck-Lite experience in both LED Design and Heavy-Duty Warning Lighting Systems Design - Optics designed specifically for LED technology - not as a gaseous discharge retrofit - Additional color options excellent option for City/County Municipal - Cement Mixer - and other Heavy-Duty - Construction or Off-Road Applications - Dual and Quad Class I flash patterns meet legal functions - Rugged black powder coated corrosion-resistant die-cast aluminum base - Designed for Surface Mount as well as Pipe Mount (1NPT pipe thread) - Electronics and Light Source are fully encapsulated in epoxy to protect components from moisture damage and corrosives - Protected against industry-standard electrical transient per SAE J1455 - Linear supply offers reduced EMI over that of gaseous discharge systems - Threaded-lens design does not require tool to replace lens - Designed without external optics to reduce maintenance and cleaning - Mounting gasket and #10 installation screws included - Magnetic Mount version features neodymium magnet - the strongest type of magnet - featuring up to 120 pounds of magnetic pull - Magnetic Mount constructed of high-quality aluminum covered in a protective rubber - featuring neodymium magnets with up to 120 pounds of magnetic pull - Magnetic Mount includes rubber suction material for extra insurance - reducing any risk of separation of light from contact surface - Cigarette Plug features On/Off switch with LED indicator light - 5-Year Warranty
Brand
TRUCK-LITE
Current Amp
1.3
Housing Material
Aluminum
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
5.5
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
4.95
Lighting Technology
LED
Mount Type
Permanent Mount | Pipe Mount
Mount/Trim Color
Black
Mount/Trim Material
Aluminum
Mounting Connector Diameter
.296 | 1
Number of Diodes/Bulbs
18
Number of Wires
3
Product Type
Beacon
Profile
Medium Profile
Rotating/Strobe
Strobe
Sealed/Bulb Replaceable
Sealed
Selectable Flash Patterns
No
Voltage
24
Wire Gauge
18
Compliance Family
EMI | SAE
Standards Met
J845 | J1455
UPC
0735111177845
UNSPSC
39111706
VMRS
034-006-004
Warning Class
I
Warranty
5-Year
Shipping Weight (lbs)
4.670000
Total Height
6.83
Total Width
6.82
