SKU
92860Y
Manufactures SKU
TRUCK-LITE 92860Y

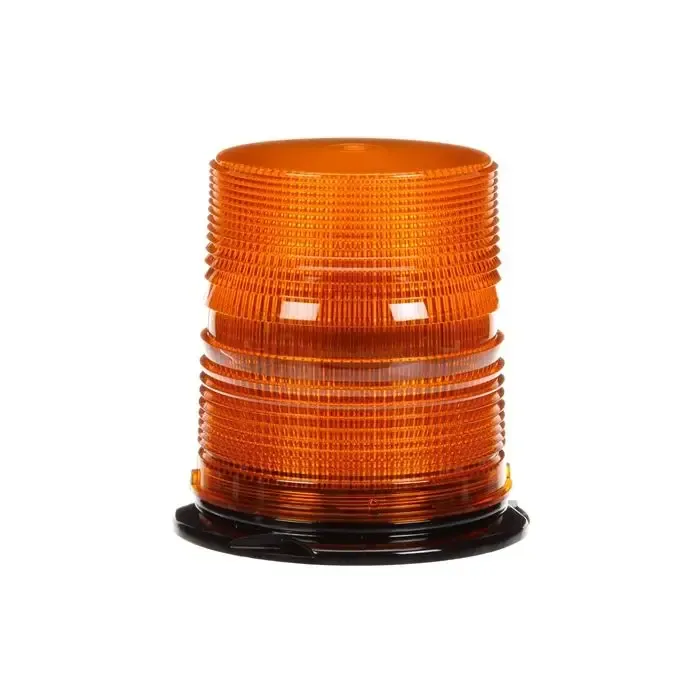

LED - Medium Profile Beacon - Yellow - Permanent Mount/Pipe Mount - Class I - Hardwired - Stripped End - 12-24V
$371.99
EA
LED - Medium Profile Beacon - Yellow - Permanent/Pipe Mount - 12-24V
Features & Benefits
Select single - double - or quad flashing patterns - LED diagnostic indicator - Enclosed circuits protect against shock - Lens twists to on/off positions - Ability to select high or low power (manual and automatic) - Designed for surface and pipe mount (1NPT pipe thread) - 24 selectable flash patterns - Durable polycarbonate lens - Universal flange base
Beacon Frequency
244
Brand
TRUCK-LITE
Current Amp
0.3
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
5.88
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
5.5
Lighting Technology
LED
Mount Type
Permanent Mount | Pipe Mount
Mount/Trim Color
Black
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
.20 | 1
Number of Diodes/Bulbs
4
Number of Wires
5
Product Type
Beacon
Profile
Medium Profile
Rotating/Strobe
Strobe
Sealed/Bulb Replaceable
Sealed
Selectable Flash Patterns
No
Voltage
12 | 24
Wire Gauge
18
Compliance Family
SAE
Standards Met
J845
UPC
0735111185123
UNSPSC
39111706
VMRS
034-006-004
Warning Class
I
Warranty
5-Year
Shipping Weight (lbs)
3.000000
Total Height
6.69
Total Width
6.41
