Universal 360° Full-Movement Arm: Equipped with an adjustable mechanical actuator arm capable of full 360-degree rotation, offering versatile mounting configurations and accurate mechanical engagement.
-
No Reverse Light Circuit Required: Designed explicitly for older trucks, vocational trailers, and specialized heavy machinery to trigger a safety backup buzzer mechanically, bypassing the need for factory reverse light wiring.
-
Water-Resistant Modular Housing: Encased in an impact-resistant, high-strength nylon-composite housing that acts as a guard against road debris, slush, and heavy moisture spray.
-
Optional Watertight Compression Upgrades: Accommodates an optional 3/8" ID watertight compression fitting to seal around a standard 2-conductor round cable, keeping internal connection points dry and corrosion-free.
-
Secure 3-Screw Terminal Interface: Built with heavy-duty, threaded 3-screw terminal studs to handle standard wiring eyes, preventing loose connections from heavy chassis vibrations.
-
Certified 5-Amp Current Capacity: Rated reliably at 5 Amps (250VAC 1/10HP) to easily manage current flow for high-decibel industrial safety horns, back-up alarms, and auxiliary strobe markers.
SKU
92925
Manufactures SKU
TRUCK-LITE 92925

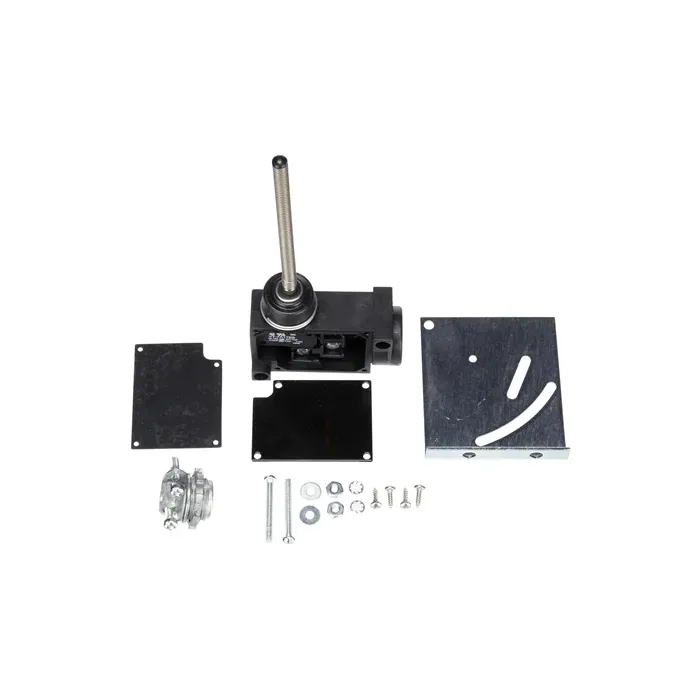

Truck-Lite 92925 Mechanical Back-Up Alarm Switch | 360-Degree Arm, 3-Screw Terminal, Bracket Mount
$110.71
EA
Truck-Lite 92925 – External Mechanical Back-Up Alarm Switch with 360-Degree Arm (5A 3-Screw Terminal)
Safely automate your heavy equipment warning systems when a standard reversing electrical feed is absent with the Truck-Lite 92925 Mechanical Back-Up Alarm Switch. Specifically engineered for commercial vehicles, roll-off trailers, dump trucks, and vocational machinery lacking a built-in reverse light circuit, this high-performance external switch is physically triggered by the vehicle's shifting linkage or body movement. Boasting full 360-degree rotational arm flexibility and a weather-resistant build, it guarantees immediate safety buzzer activation in rugged operational environments.
Features & Benefits
Brand
TRUCK-LITE
Current Amp
5
Housing Material
Plastic
KIT
No
Lamp Connection
3 Screw Terminal
Mount Type
Bracket Mount
Mounting Connector Diameter
0.25
Product Type
Back-Up Alarm Switch
Compliance Family
CSA | UL
UPC
0735111096474
UNSPSC
39000000
VMRS
054-002-000
Warranty
1-Year
Shipping Weight (lbs)
0.580000
Total Height
8.26
Total Width
1.47
