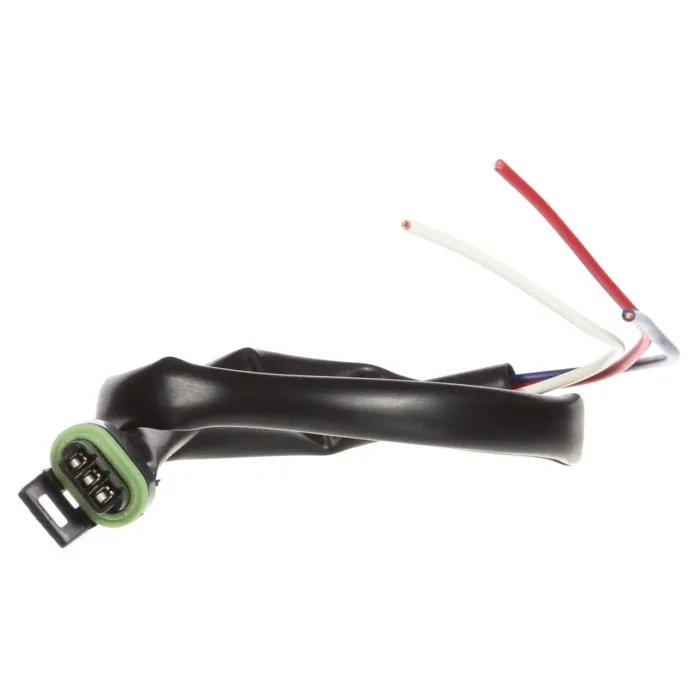

Ensure all-weather protection and solid electrical contact for your commercial fleet with the Truck-Lite 9465 Signal-Stat 20-Inch Wiring Harness. Specifically designed as the primary pigtail connector for the Signal-Stat / 5800 Series dual-face pedestal lamps, this heavy-duty wiring harness streamlines your vehicle's marker clearance and turn signal configurations into a single, high-performance connection.
Built to combat the worst road conditions, this flat cable harness features a premium Packard Metri-Pack Connector (12162182) on one end that actively blocks out moisture, salt creep, and corrosion. The opposite end features a clean Blunt Cut / Stripped End complete with integrated heat shrink tubing, providing a completely sealed, professional-grade termination. Formulated from premium materials, this 3-conductor, 18-gauge wiring harness offers a universal fit that is ideal for trailers, tanks, and retrofitting older commercial vehicles.
Corrosion-Resistant Connector: Equipped with a genuine Packard Metri-Pack connector (MPN: 12162182) to completely eliminate rust, salt creep, and environmental damage at the plug source.
Weatherproof Protection: Features built-in heat shrink tubing on the wire side to guarantee a completely sealed, watertight connection.
5800 Series Optimization: Engineered specifically to connect with Truck-Lite Signal-Stat 5800 Series pedestal lamps and marker clearance lighting.
Heavy-Duty Construction: Composed of a flat, PVC-jacketed cable wrapping three color-coded 18 AWG wires (Blue, Red, and White).
Flexible Installation: Universal blunt cut end allows commercial mechanics to splice, extend, or ground wires according to custom trailer or truck chassis layouts.
Regulatory Compliance: 100% compliant with industry-standard SAE, DOT, and NFPA regulations.
