Product Type: Stop / Turn / Tail & Back-Up Light Pigtail Adapter Plug
-
Harness Length: 8 Inches (20.3 cm)
-
Wire Gauge: Heavy-Duty 16-Gauge GPT Wire
-
Conductor/Wire Quantity: 4 Wires (Color-Coded for Brake, Turn, Tail, and Reverse Circuits)
-
Terminal Material: Corrosion-Resistant Tin-Plated Brass Terminals
-
Plug Side One: Fit 'N Forget 4-Pin Sealed Connector
-
Plug Side Two: Stripped Wire Ends (Blunt Cut) for Hardwired Field Splicing
-
Moisture Protection: Sealed against dirt, water, road salt, and corrosive elements

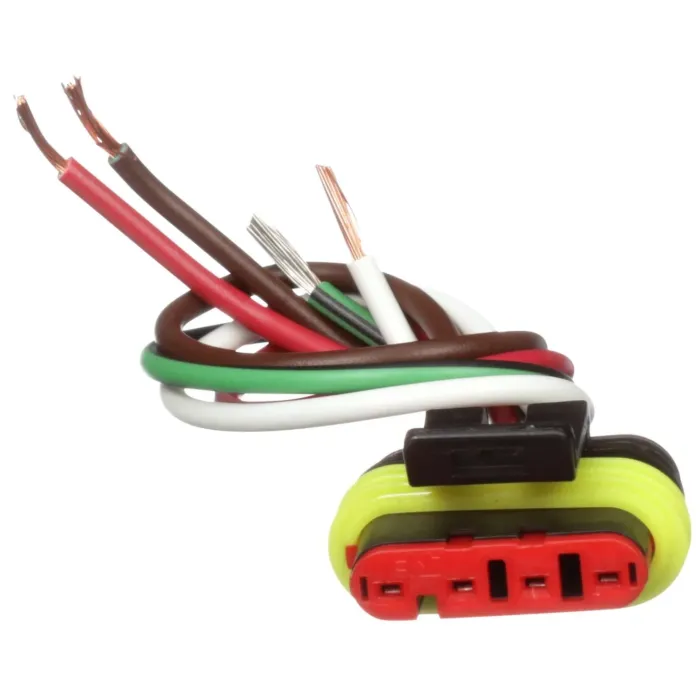

Truck-Lite 94831 Fit 'N Forget 8-Inch Stop/Turn/Tail & Back-Up Plug – 16-Gauge GPT Wire, 4-Pin Connector to Stripped Ends
Integrated Multi-Function Fleet Signaling: The Truck-Lite 94831 Fit 'N Forget 4-Pin Plug
Consolidate your vehicle's rear lighting circuits into a single, high-performance connection with the professional-grade Truck-Lite 94831 Stop/Turn/Tail (S/T/T) and Back-Up Light Plug. Measuring 8 inches in length, this heavy-duty 4-wire pigtail adapter is specifically engineered to power advanced, multi-functional rear LED lamps that combine brake lights, turn signals, tail markers, and reverse lighting functions into one unit, eliminating messy separate wiring routes.
Advanced Environmental and Corrosion Defense
The rear and underside sections of commercial trucks and trailers expose electrical circuits to continuous moisture, corrosive road salt, aggressive ice-melting chemicals, and high-frequency vehicle vibrations. The Truck-Lite 94831 counters these hazards with a specialized, molded Fit 'N Forget 4-Pin connector on one side. When clicked into a compatible multi-function LED lamp, it creates an ultra-secure, moisture-tight barrier that locks out water, road grime, and debris. This sealed interface protects the high-conductivity, tin-plated brass terminals from oxidizing rust, keeping your fleet DOT-compliant. Plus, pairing this adapter plug with compatible Truck-Lite LED lamps qualifies your entire rear lighting setup for a Lifetime Lighting Warranty!
Heavy-Duty Fleet Performance with Splicing Flexibility
Built to survive the punishment of daily long-haul highway service, this 4-wire pigtail utilizes premium 16-gauge GPT copper wiring that offers excellent flexibility and high mechanical resistance against pinching or rubbing. The supply side terminates in clean stripped wire ends (blunt cut), providing fleet mechanics the absolute flexibility needed to perform quick, hardwired connections directly to your main vehicle wiring harness, junction boxes, or existing auxiliary power circuits.
94831, TL94831, TRU94831
