Space-Saving Right-Angle Plug: The right-angle PL-3 connection format completely avoids tight wire-bending behind the lamp housing, preventing premature harness fatigue.
-
Incandescent Optimization: Crafted for an airtight, vibration-resistant fit into standard 4" round and oval dual-function sealed incandescent stop, tail, and turn signal lamps.
-
Heavy-Duty Composition: Built using robust 16 AWG GPT multi-colored wiring capable of handling consistent electrical current without overheating.
-
Airtight Ground Path: Features a pre-terminated #10 ring terminal on the ground wire for an immediate chassis connection to eradicate dimming or flickering lights.
-
Corrosion-Resistant Terminals: Equipped with premium tin-plated brass terminal pins that offer long-term defense against moisture, road salt, and harsh weathering.

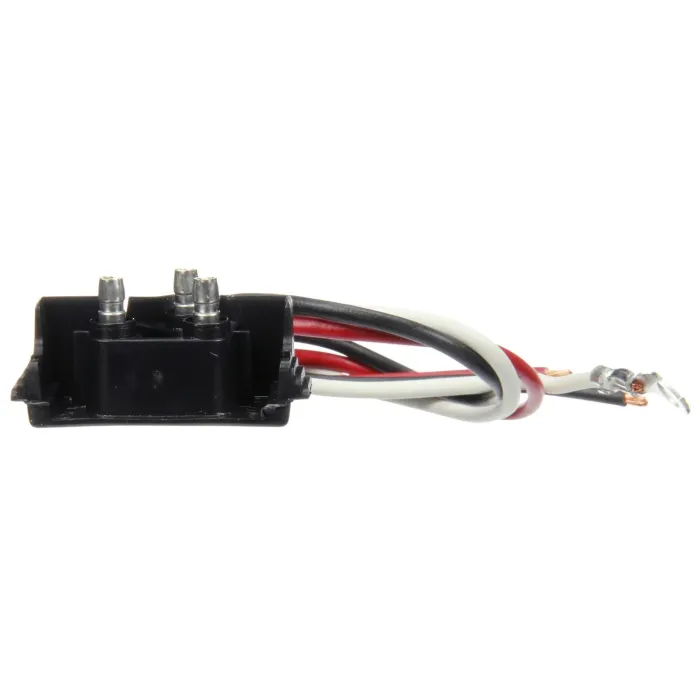

Truck-Lite 94993 Right Angle Stop/Turn/Tail Wire Plug – 11" 16-Gauge GPT Wire, Right Angle PL-3 to Stripped End & Ring Terminal
Relieve heavy cable strain and maximize rear clearance with the Truck-Lite 94993 Right Angle Stop/Turn/Tail Plug Assembly. Specifically engineered for dual-function, sealed incandescent lamps, this heavy-duty 11-inch 3-wire pigtail guarantees an exact, low-profile fit. Featuring a right-angle PL-3 male plug that transitions to color-coded stripped wire ends and a pre-terminated chassis ring terminal, it ensures consistent electrical conductivity for your trailer or commercial vehicle's brake, turn, and tail signal lamps.
When routing main lighting systems within narrow trailer frames, concrete mixers, or deep body panels, traditional straight plugs can easily crimp, pinch, or disconnect due to heavy road vibrations. The Truck-Lite 94993 Right Angle Sealed S/T/T Pigtail Harness addresses these severe spatial limits without sacrificing structural durability. It is an industry-trusted, OEM-grade solution commonly installed on vocational equipment, delivery fleets, and commercial heavy rigs to minimize maintenance overhead.
This 3-conductor harness is built using premium 16-gauge GPT (General Purpose Thermoplastic) wire. It comes color-coded (Red for Stop/Turn, Black for Tail, and White for Ground) to ensure quick, error-free fleet splicing. The plug side features high-conductivity tin-plated brass terminals that naturally resist oxidation, while the vehicle integration side features clean 6/32" stripped power leads alongside a pre-attached #10 ring terminal ground for a secure, direct-to-chassis connection.
