SKU
9537
Manufactures SKU
TRUCK-LITE 9537

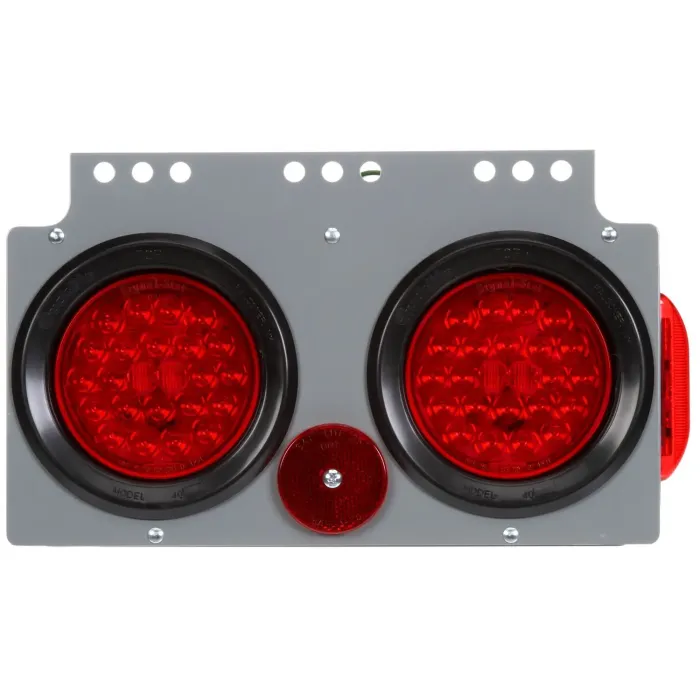

Signal-Stat - LED - M/C & S/T/T Light Module w/ Side Marker - Right Hand Side - Black PVC - 12V - Kit
$119.09
EA
Signal-Stat - LED - M/C & S/T/T Module w/ Side Marker - RH - Black PVC - 12V - Kit
Features & Benefits
Features universal mount designed to retrofit a wide variety of vehicles - Kits include metal mounting box with side marker lamp and reflector - Optional mounting gasket available to provide extra seal between module and body -
Brand
Signal-Stat
Current Major Amp
0.34
Current Minor Amp
0.05
Housing Material
Steel
KIT
Yes
Lamp Connection
PL-3
Lens Color
Red
Lens Height
4.28
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
4.28
Lighting Technology
LED
Mount Type
Bracket Mount
Mount/Trim Color
Black
Mount/Trim Material
PVC
Mounting Connector Diameter
0.38
Number of Lamps
4
Number of Wires
4
Position
Right Hand Side
Product Type
Light Module
Sealed/Bulb Replaceable
Sealed
Series
Signal-Stat
Voltage
12
Wire Gauge
14
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
A | I6 | P2 | S2 | T
UPC
0735111158349
UNSPSC
25172900
VMRS
034-002-025
Warranty
1-Year
Shipping Weight (lbs)
4.870000
Total Height
7.75
Total Width
12.88
