Application: LED Light Bar and Rear Identification (ID) Lamp Systems
-
Harness Type: Multi-Plug Identification Lamp Harness
-
Harness Length: 22.75 inches (22.75 in.)
-
Center-to-Center Spacing: 6 inches (between plugs)
-
Wire Gauge: Heavy-duty 16 AWG wire
-
Wire Type: GPT (General Purpose Thermoplastic)
-
Number of Conductors: 2-Wire system
-
Number of Plugs: 3 Plugs
-
Plug Technology: Fit 'N Forget M/C (Moisture/Corrosion proof)
-
Terminal Material: High-conductivity tin-plated brass
-
Connection Side 1: Fit 'N Forget Plugs
-
Connection Side 2: .180 Bullet Terminal / Receptacle
-
Wire Colors: Black / White

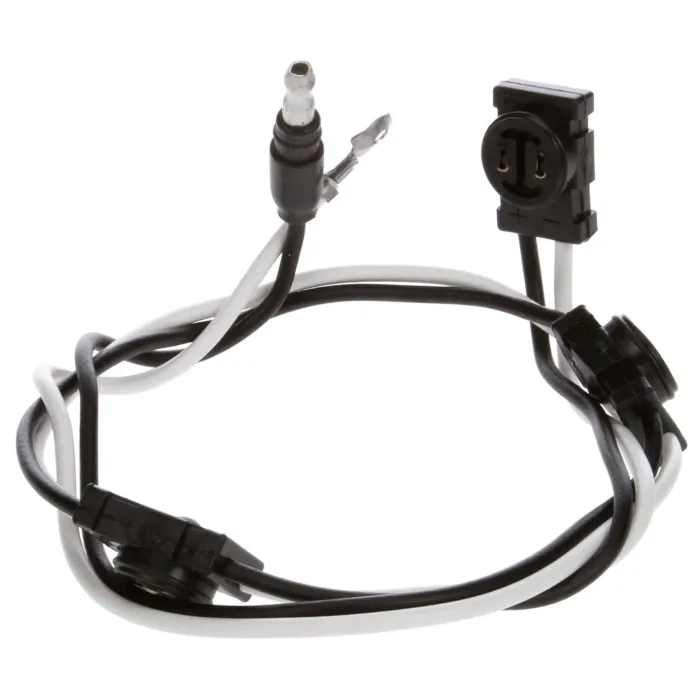

Truck-Lite 96989 22.75-Inch LED Bar Lamp Identification Harness (3-Plug, 16 Gauge GPT, Fit 'N Forget M/C, .180 Bullet)
Protect your critical vehicle safety lighting from the elements with the premium corrosion resistance of the Truck-Lite 96989 3-Plug LED Bar Lamp Identification Harness. Specifically designed for commercial trucks, trailers, and fleet maintenance, this heavy-duty 22.75-inch identification (ID) harness provides a highly secure electrical connection for three-light marker assemblies and light bars.
Engineered with Truck-Lite's advanced Fit 'N Forget M/C technology, this harness creates a completely sealed barrier that actively keeps out water, road salt, grime, and other corrosive elements. Combining this harness with Truck-Lite LED lamps can make your lighting installation eligible for a Lifetime Lighting Warranty.
Constructed with premium 16-gauge GPT (General Purpose Thermoplastic) black and white wire, the dual-conductor design ensures exceptional conductivity and durability under severe structural vibrations. The harness features high-performance, tin-plated brass bullets and receptacles on one side, transitioning seamlessly to a secure Fit 'N Forget molded plug configuration for snap-and-go lighting integration.
