Application: Heavy-duty main tractor-to-trailer auxiliary electrical power routing
-
Cable Length: 15 feet (15 ft. / 180 inches)
-
Number of Conductors: 7-Wire configuration
-
Plug Material: Die-Cast Heavy-Duty Metal
-
Connection Side One: Female 7-Pole Round Pin Plug
-
Connection Side Two: Female 7-Pole Round Pin Plug
-
Wire Gauge Sizes: Optimized 10 AWG and 16 AWG internal layout
-
Jacket Color/Finish: Matte Black
-
Operating Temperature Window: Ultra-wide -87°F to +195°F (-66°C to +91°C) range
-
Regulatory Certifications: Exceeds ATA, TMC, SAE J559, and SAE J1067 standards

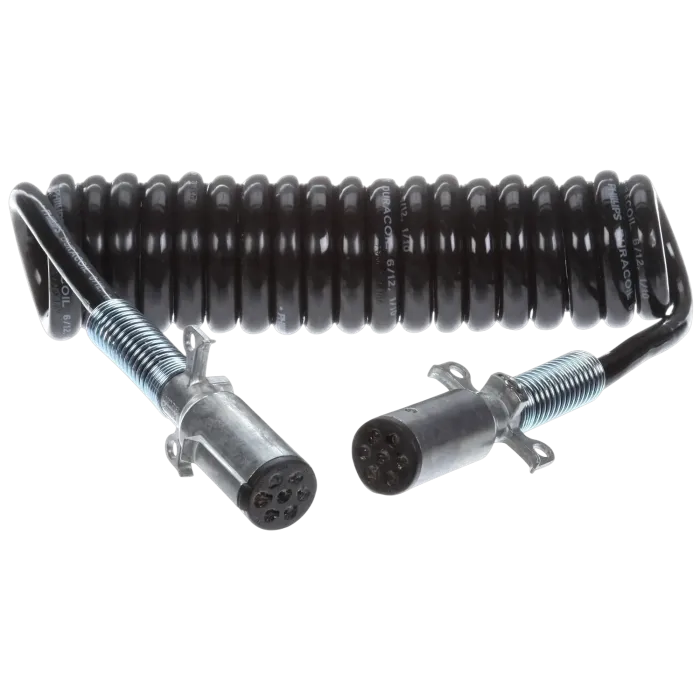

Truck-Lite 97153 15-Foot Heavy-Duty 7-Way Trailer Cord (7-Conductor, Rugged Metal Dual Female 7-Pole Plugs, 10/16 AWG Wire)
Deliver uncompromised electrical power and maximum circuit reliability down your trailer line with the Truck-Lite 97153 15-Foot Heavy-Duty 7-Way Trailer Cord. Specifically engineered as an extended high-performance power connection bridge between tractors and trailers, this premium 7-conductor electrical cable is a vital upgrade for long-haul freight fleets, commercial transport logistics, and severe-duty vocational trucks requiring extra slack for tight turns and wide articulations.
Built to withstand severe over-the-road operational demands, this trailer cable features a dual-gauge layout combining thick 10-gauge and 16-gauge copper conductors. This optimized thickness effectively manages high-current power routing for heavy-duty stop, turn, tail, and auxiliary functions while minimizing sudden voltage drops across the longer 15-foot distance. The assembly terminates with ultra-rugged, precision-machined 7-pole female metal plugs on both ends to guard against broken terminals and loose connections at both the tractor and trailer interfaces.
Designed to perform flawlessly where inferior PVC cables fail, this cord features an advanced elastomeric black jacket that handles extreme thermal shifts—remaining perfectly flexible in sub-zero freezes down to -87°F (-66°C) and remaining highly stable under scorching highway heat up to +195°F (+91°C). Fully 100% factory pre-tested and compliant with ATA, SAE J559, SAE J1067, and TMC requirements, the Truck-Lite 97153 completely blocks out moisture, road grime, and de-icing chemicals to keep your fleet safe and fully DOT-compliant mid-route.
