SKU
97201
Manufactures SKU
TRUCK-LITE 97201

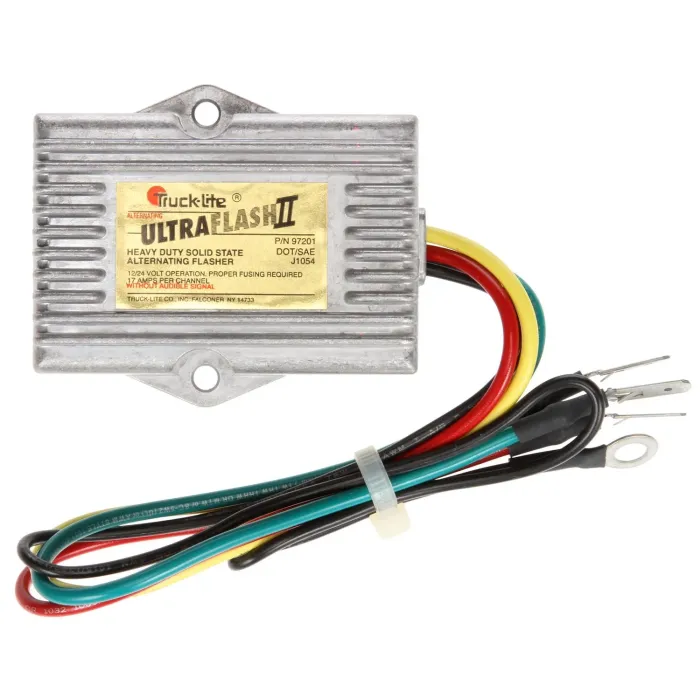

8 Light Heavy-Duty Solid-State - Aluminum Flasher Module - 90fpm - 12-24V - Hardwired - Spade Terminal/Ring Terminal
$118.90
EA
8 Light Heavy-Duty Solid-State - 90fpm - Flasher Module - 12-24V
Features & Benefits
ULTRA FLASH II - Solid-state electronics are sealed in polyurethane for moisture and corrosion protection - Surface mounts with two 1/2"-6 pan head screws at 212" centers or with two 4" cable ties (both included) - Protects against short circuit overloads with a self-resetting feature - Works with LED or incandescent lamps on 12V or 24V electrical systems - 97231 - 97232 and 97233 rated for loads below 25 amps or 12 --32 cp bulbs - 97201 rated for loads below 17 amps per channel or 8-32/3 cp bulbs - Optional remote wiring requires 12" jumper wire - 94954 - 97231 - 97232 and 97333 feature folding bi-polar plug with 11" leads for reverse polarity operation - 97201 features three 1/4" tabs and one 1/4" ring with heat shrink tubing and 12" leads - 97201 used for wig/wag system - For interior/cab use only - Do not expose to moisture or liquid
Audible
No
Brand
TRUCK-LITE
Current Amp
17
Flasher Mechanism
Heavy-Duty Solid-State
Housing Material
Aluminum
KIT
No
Lamp Connection
Hardwired
Mount Type
2 Screw
Mount/Trim Color
Silver
Mount/Trim Material
Aluminum
Mounting Connector Diameter
0.188
Number of Lamps
8
Number of Wires
4
Product Type
Flasher Module
Strobe Frequency Max
90
Voltage
12 | 24
Wire Gauge
14 | 18
Compliance Family
FMVSS 108 | SAE
Standards Met
J590 | J1054
UPC
0735111035633
UNSPSC
39000000
VMRS
065-029-010
Warranty
5-Year
Shipping Weight (lbs)
0.760000
Total Height
1.32
Total Width
3.12
