Harness Length: 11.5 inches (11.5" total reach)
-
Wire Quality: Heavy-Duty 16 AWG (16-Gauge Copper Elements)
-
Insulation Wire Type: GPT (General Purpose Thermoplastic)
-
Total Wire Conductor Count: 8-Wire Matrix Architecture
-
Connection Side One: 3-Position Connector (Industry Standard Shell 282105) / Fit 'N Forget S.S. Profile
-
Connection Side Two: Heavy-Duty Two-Position Plug (2-Pole Configuration)
-
Product Group: Harness Accessories, Pigtails & Trailer Wiring Plugs
-
Functionality: Marker Clearance & Secondary Brake Warning Control

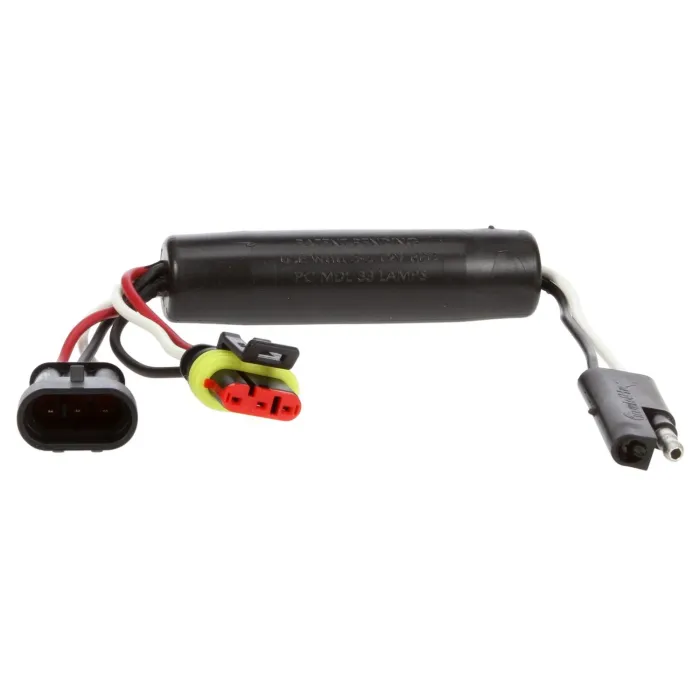

Truck-Lite 97365 Model 33 Dual-Function Marker Clearance Plug (11.5-Inch Pigtail, 16 Gauge GPT Wire, Fit 'N Forget Stop S.S. 3-Position Connector 282105 to Two-Position Plug)
Optimize your commercial vehicle's exterior lighting safety and unlock dual-stage visibility with the advanced engineering of the Truck-Lite 97365 Model 33 Marker Clearance Plug. Specifically built to integrate seamlessly with Truck-Lite’s premium Fit 'N Forget Stop/Turn/Tail (S.T.T.) networks and Model 33 series lamps, this heavy-duty 11.5-inch pigtail adapter functions as a critical service replacement part for long-haul freight trailers, vocational fleet bodies, and commercial truck builders.
This high-performance adapter plug delivers intelligent vehicle utility right out of the box: it enables compatible marker and clearance lamps to operate across two distinct light output levels. Under normal driving conditions, your connected lamps emit a standard marker glow; the moment the service brakes are applied, the specialized circuit actively shifts the marker loop to an enhanced, attention-grabbing auxiliary braking safety warning. This dual-level function significantly boosts rear-end and side-profile presence awareness, keeping your asset protected against mid-route rear-end collision risks.
Built to survive years of brutal over-the-road operational demands, the 97365 completely eliminates the hand-splicing errors and tape-wrapped failures common to standard shop wiring fixes. On the primary side, it features a specialized 3-position Fit 'N Forget S.S. connector (Industry Shell 282105) that mechanically locks and tightly seals onto your main lamp socket. The secondary end seamlessly transitions into an integrated two-position plug layout. Constructed from robust 16-gauge GPT (General Purpose Thermoplastic) copper conductors and engineered with an 8-wire structural matrix, this pigtail acts as an aggressive barrier against water ingress, highway de-icers, and corrosive road salts to completely eliminate green-wire terminal rot.
