Application Profile: Heated wide-angle side view convex mirror head with offset alignment
-
Common Industry Size: 8.5-Inch (8.5" Diameter)
-
Internal De-Icing System: Integrated 12V DC Heating Element Grid
-
Electrical Draw Profile: 2.5 Amps @ 12V DC Only
-
Mirror Profile Shape: Round with Offset Mounting Configuration
-
Housing Material / Color: Heavy-Gauge Stamped Steel / Matte Black Powder-Coat
-
Mounting Connector Type: 5/16" Female Threaded Adjustable Ball Stud with 1/2" Bolt
-
Included Accessories: Heavy-Duty Structural "L" Mounting Bracket Pack
-
Harness Wire Configuration: 2-Wire Hardwired Pigtail / Stripped End Leads
-
Total Power Lead Wire Length: 60 Inches (60" Total Reach)
-
Total Product Dimensions: 8.50" Height x 8.50" Width x 1.75" Total Depth

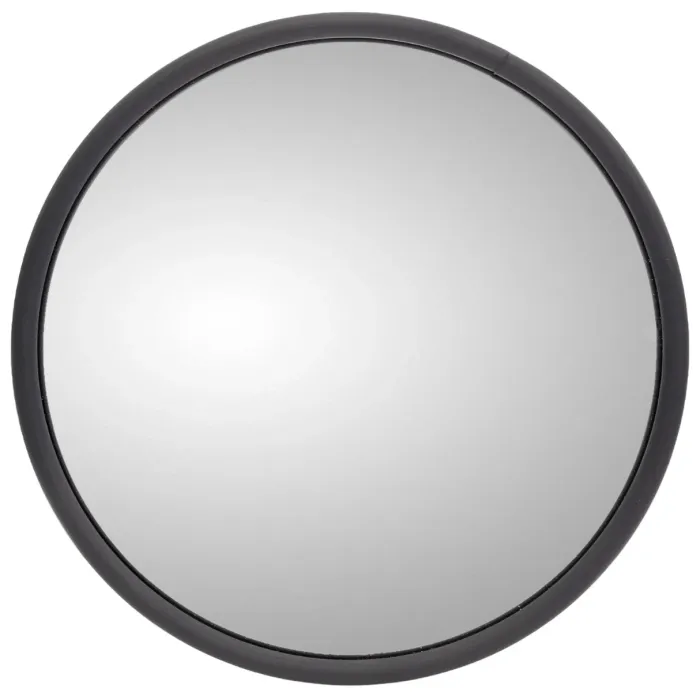

Truck-Lite 97615 Heated 8.5-Inch Round Convex Mirror Head (Black Powder-Coated Steel Housing, Offset Ball Stud Mount with L-Bracket)
Maintain clear, unobstructed visibility through severe ice, frost, and dense winter fog while eliminating dangerous blind spots with the professional winter performance of the Truck-Lite 97615 Heated 8.5-Inch Round Convex Mirror Head. Specifically engineered for long-haul commercial transport, vocational delivery fleets, waste management trucks, and winter service vehicles, this premium auxiliary convex mirror head features a fast-acting integrated heating element that rapidly defuses glass condensation and frozen accumulations to preserve road safety in the coldest climates.
The 97615 is built with heavy-duty commercial upgrades to guarantee extensive blind spot coverage. Operating on a 12V DC system drawing 2.5 amps, its internal heating grid distributes uniform thermal warmth directly across the premium silvered glass lens, cleanly melting away stubborn snow pack and morning frost. To optimize your panoramic view, the 8.5-inch high-visibility convex glass provides wide-angle rearward clarity. The assembly features an offset mounting stud position, which allows fleet technicians to maximize extension range and dial in viewing angles far beyond standard center-mount limits.
Crafted to survive brutal road conditions and severe over-the-road chassis vibrations, the mirror features a rugged stamped steel outer housing treated with a corrosion-resistant black powder-coated finish. For swift integration into any standard truck door loop, west coast frame, or fender tripod assembly, this universal mirror utilizes a 5/16-inch female threaded adjustable ball stud with a 1/2-inch bolt. It comes complete with 60 inches of hardwired, stripped-end lead wiring (compatible with Truck-Lite cab switches #102 or #132) and includes a heavy-duty structural steel "L" mounting bracket right in the box.
Directly replaces Signal-Stat 7078BK, 7079BK, and 7091BK; interchanges with Grote 12823 and Velvac 708458 / 713123
