Dimensions: 7.50" Length x 0.75" Width (3/4" tubing thickness)
-
Configuration: Fixed 90-Degree Elbow Offset Extension
-
Application: Universal driver or passenger side tripod/loop frame mirror assembly
SKU
97748
Manufactures SKU
TRUCK-LITE 97748

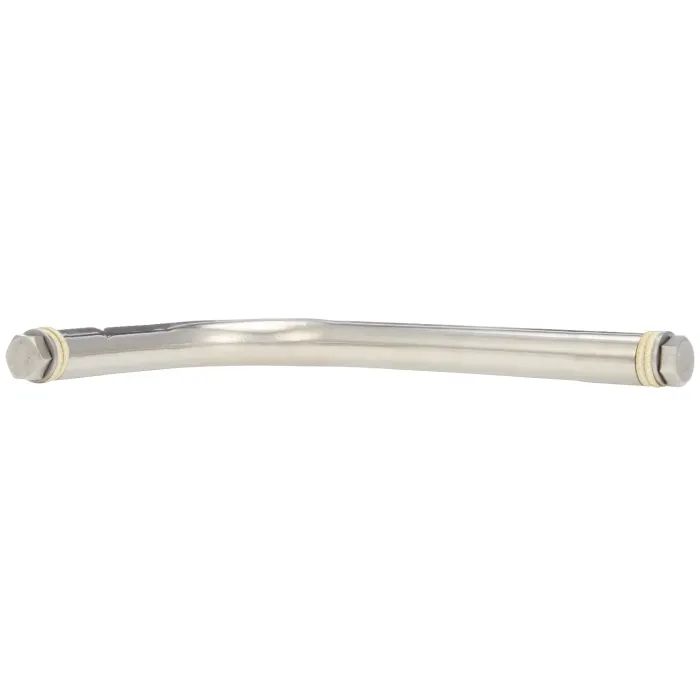

Truck-Lite 97748 Universal 7.5" x 3/4" Silver Steel Side Offset Elbow Extension Bracket (Replaces Signal-Stat 7208)
$22.58
EA
The Truck-Lite 97748 is a heavy-duty universal side offset elbow extension designed to adjust and stabilize commercial vehicle mirror placements. Stamped from carbon structural steel with a corrosion-resistant silver finish, this 90-degree bracket extends mirror heads to eliminate blind spots and minimize glass vibration. It serves as a direct drop-in replacement for legacy Signal-Stat 7208 hardware profiles.
Features & Benefits
Brand
TRUCK-LITE
Compatible Mirrors
Large Rectangular Mirror Head (97805)
KIT
No
Mount Type
Tripod Bracket
Mount/Trim Color
Silver
Mount/Trim Material
Steel
Mounting Connector Diameter
0.394
Mounting Location
Universal
Product Type
Offset Elbow Extension
Compliance Family
ASTM
Standards Met
ASTM-B-117
UPC
0735111079286
UNSPSC
25172604
VMRS
002-050-334
Warranty
1-Year
Shipping Weight (lbs)
0.830000
Total Height
4
Total Width
0.75
Signal-Stat 7208, NAPA LIT97748
