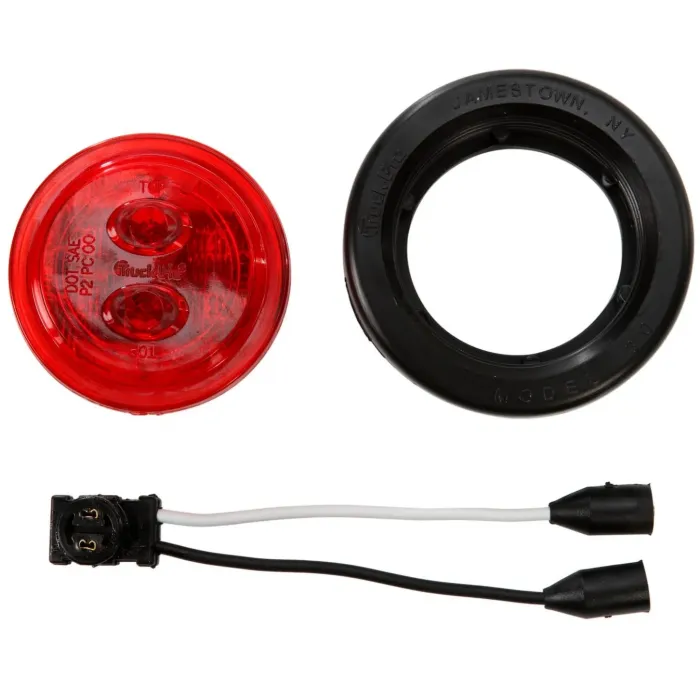

Complete Installation Kit: Comes fully packaged with the low-profile 6-diode red lamp, a black PVC mounting grommet (30700), and a matching Fit 'N Forget plug harness (93745).
-
High-Output 6-Diode Configuration: Engineered with six high-performance LEDs to deliver maximum light intensity within a shallow-depth housing.
-
Ultra-Slim Low Profile: Compact thickness minimizes the lamp's footprint, making it less vulnerable to external debris or physical impact.
-
Fit 'N Forget Security: Advanced plug interface seals out moisture and corrosive debris directly at the terminal pins to eliminate wire-side oxidation.
-
Complete DOT Compliance: Meets strict FMVSS 108 and CMVSS 108 criteria, carrying P2, P3, and PC combination ratings.
SKU
30086R
Manufactures SKU
TRUCK-LITE 30086R
Truck-Lite 30086R 30 Series 2" Round Low Profile Red LED Marker Clearance Light Kit | 6-Diode, Black PVC Grommet, Fit 'N Forget, 12V
$23.38
EA
Optimize your vehicle's clearance profile while maintaining maximum light output with the high-performance Truck-Lite 30086R 30 Series 2" Round Low Profile Red LED Marker Clearance Light Kit. Purpose-built for heavy-duty commercial applications with tight spatial constraints, this premium installation kit integrates a specialized, slimmed-down 6-diode sealed red lamp, a shock-absorbing black PVC mounting grommet, and a plug-and-play wiring harness. It is the premier selection for commercial fleets, lowboy trailers, narrow utility bodies, and vocational vehicles requiring an ultra-bright, low-profile auxiliary lighting setup.
Low-Profile Styling & Intense 6-Diode Visibility
Avoid the high maintenance costs associated with protruding clearance fixtures. The Truck-Lite 30086R is engineered with an advanced low-profile design that sits exceptionally close to the vehicle body, drastically reducing the risk of impact damage from low-hanging branches, tight loading bays, or dock seals. Despite its slim footprint, this model houses an intense 6-diode LED array beneath its specialized optics. This multi-diode arrangement distributes an exceptionally bright, broad-angle red signal that satisfies strict SAE PC-rated combination lighting criteria, allowing a single lamp to function as both a clearance and marker light at a 45-degree angle.
Fit 'N Forget Connectivity & Heavy-Duty Environmental Seal
Eliminate terminal corrosion and intermittent power flickering. This premium 30 Series marker kit relies on Truck-Lite's advanced Fit 'N Forget M/C lamp connection, which seats tightly into a 16-gauge wiring harness terminating in a standard Female PL-10 plug. This configuration completely encapsulates the internal copper electrical contacts, shielding them from road salt, water, and grime to ensure a constant power flow over millions of miles. The outer polycarbonate lens and housing are sonically welded together, creating a permanently sealed, watertight barrier against heavy road spray and high-pressure wash-downs.
Features & Benefits
Brand
TRUCK-LITE
Common Size
2
Current Major Amp
0.12
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
Fit 'N Forget M/C
Lens Color
Red
Lens Height
2.25
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
2.25
Lighting Technology
LED
Mount Type
Grommet Kit
Mount/Trim Color
Black
Mount/Trim Material
PVC
Number of Diodes/Bulbs
6
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
30 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111065487
UNSPSC
25172900
VMRS
034-004-253
Warranty
Lifetime
Shipping Weight (lbs)
0.400000
Total Height
2.25
Total Width
2.25
