Secure Integrated Flange: Features a high-impact red ABS plastic flange permanently molded to the lamp housing, allowing direct, secure surface mounting without needing a separate grommet.
-
All-in-One Signal Solution: Serves three critical functions in one unit—tail, brake, and turn signal lighting.
-
Hermetically Sealed Design: A robust, sealed polycarbonate lens and housing lock out moisture, road grime, and dust to prolong bulb life.
-
Reliable Dual-Filament Bulb: Powered by a classic, high-performance dual-filament incandescent bulb designed to draw 2.1 Amps (Major/Stop/Turn) and 0.48 Amps (Minor/Tail) at 12.8V.
-
Industry Standard Pigtail Included: The kit comes complete with a 3-wire, 16-gauge right-angle PL-3 plug ending in stripped wires and a convenient ground ring terminal.
-
Fully Certified & Compliant: Meets FMVSS 108, CMVSS 108, DOT, and SAE standards (marked P2, I6, P) for legal highway use in North America.

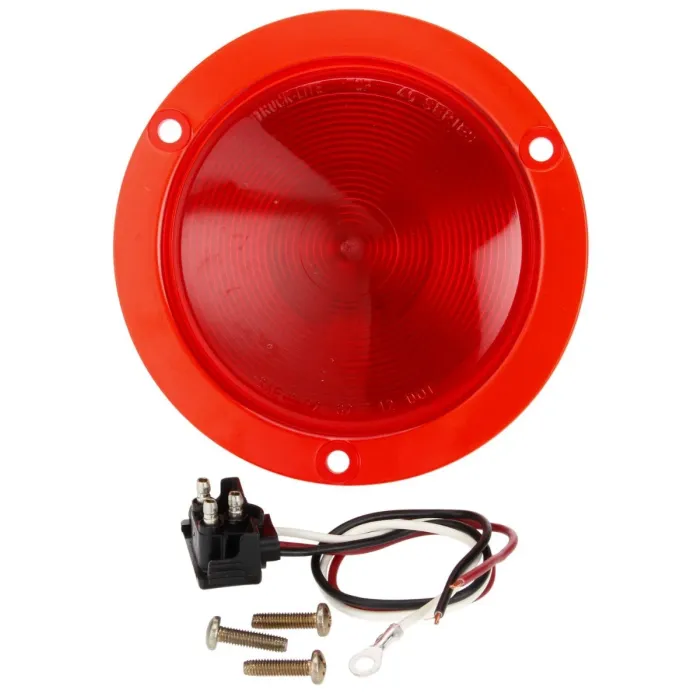

Truck-Lite 40029R 40 Economy Incandescent Red 4" Round Stop/Turn/Tail Light Kit (12V, Red ABS Flange Mount, PL-3 Connection)
Equip your commercial truck, fleet vehicle, or heavy-duty trailer with the secure and budget-friendly Truck-Lite 40029R 40 Series Economy Stop/Turn/Tail Light Kit. This all-in-one kit offers dual-filament incandescent brightness for dependable brake, turn, and tail signaling.
Unlike standard grommet-mount models, the Truck-Lite 40029R features a permanently affixed, high-impact red ABS plastic flange. This integrated flange mount provides a solid, tamper-resistant surface installation that fastens directly to your vehicle's body, eliminating the need for separate rubber mounting components. This complete kit includes the sealed 40229R red lamp with its integral flange and a standard right-angle PL-3 pigtail harness (featuring stripped wire ends and a grounded ring terminal) for a seamless 12V installation.
Grote: 53612
Other Interchanges: TL40029R, TK40029Y
Truck-Lite alternative options: 40029R3 (Bulk pack), 40229R (Replacement flange-mount lamp only), 40028R (Standard grommet-mount kit version)
