SKU
40042R
Manufactures SKU
TRUCK-LITE 40042R

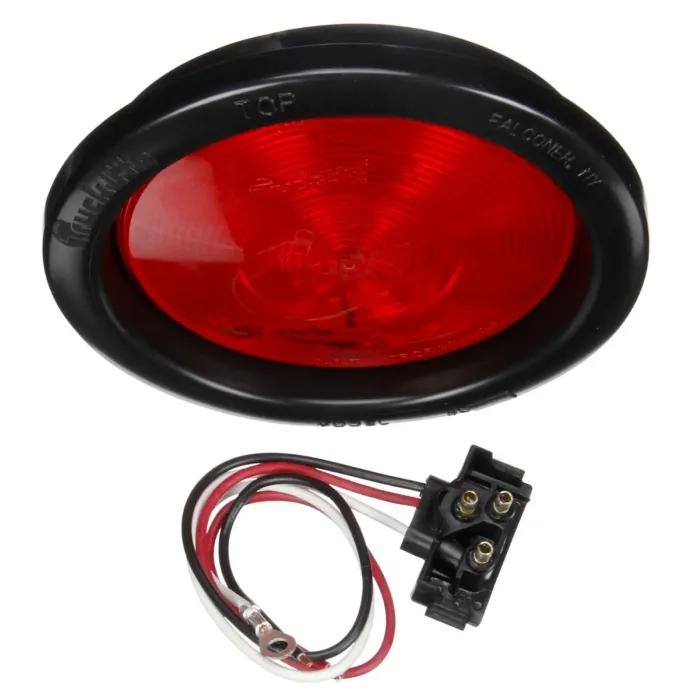

Super 40 - Incandescent - Red - Round - 1 Bulb - Stop/Turn/Tail - Black Grommet Mount - PL-3 - Stripped End/Ring Terminal - 12V - Kit
$15.32
EA
Super 40 - Incan. - Red - Round - 1 Bulb - S/T/T - Black Grommet - PL-3 - Stripped/Ring - 12V - Kit
Features & Benefits
8 square inch (illuminating) stop/turn lens area for vehicles under 80 inches wide - Meets reflex - tail or clearance function for vehicles over 80 inches wide (Use part# 40248R) - Flush mount grommets are designed for mounting in a 4 1/2" hole - Uniquely designed shock-mount extends lamp life - Upgrade to LED Lighting Systems using Truck-Lite's Super 44 series
Brand
TRUCK-LITE
Common Size
4
Current Major Amp
2.1
Current Minor Amp
0.48
KIT
Yes
Lamp Connection
PL-3
Lens Color
Red
Lens Height
4.31
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
4.31
Lighting Technology
Incandescent
Mount Type
Grommet Kit
Mount/Trim Color
Black
Mount/Trim Material
PVC
Mounting Connector Diameter
4.5
Number of Diodes/Bulbs
1
Number of Wires
3
Product Type
Stop/Turn/Tail
Sealed/Bulb Replaceable
Sealed
Series
Super 40
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
P2 | S2 | I6 | T
UPC
0735111041153
UNSPSC
25172900
VMRS
034-002-013
Warranty
3-Year
Shipping Weight (lbs)
0.580000
Total Height
4.31
Total Width
4.31
