Unique Full-Pattern 24-Diode Array: High-density LED layout distributes daylight-bright yellow light evenly across the entire lens surface.
-
Epoxy-Encapsulated Electronics: Internal circuitry is completely potted in epoxy to prevent water ingress, road salt damage, and terminal corrosion.
-
Dual-Function Front / Park / Turn Performance: Functions seamlessly as both a continuous parking lamp and a high-visibility front turn signal.
-
Industry-Standard PL-3 Connection: Connects directly into standard 3-wire PL-3 right-angle harness plugs for quick servicing.
-
Grommet-Mount Compatibility: Mounts into standard 60 Series rubber grommets (such as Truck-Lite #60700 or #60704) for standard 2" x 6" cutouts.
-
Energy-Efficient 12V Operation: Draws minimal power—0.38 Amps (Major) for turn function and 0.03 Amps (Minor) for parking function—saving vehicle battery life.

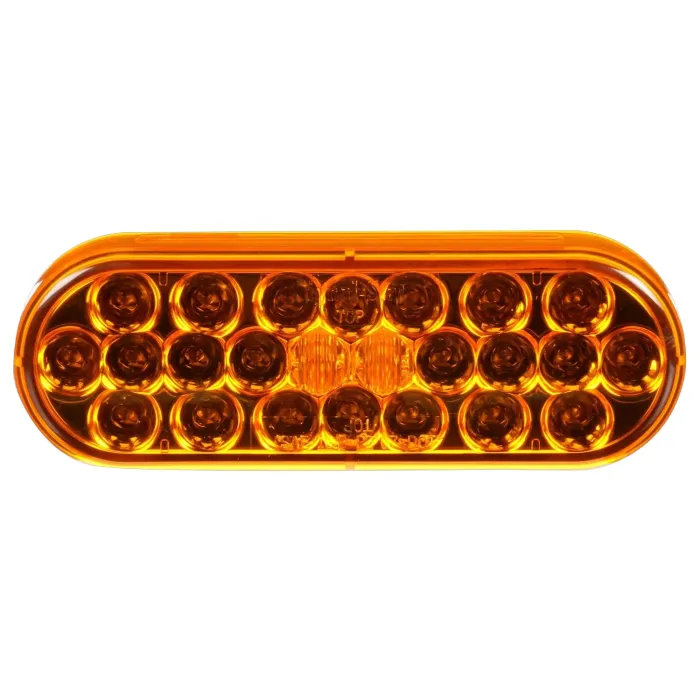

Truck-Lite 6050A – Signal-Stat, 2" x 6" Oval 24-Diode LED Front / Park / Turn Signal Light (Yellow Polycarbonate Lens, Grommet Mount, PL-3 Connection, 12V)
Upgrade front-end illumination and vehicle safety with the Truck-Lite 6050A Signal-Stat Yellow Oval LED Front/Park/Turn Light. A popular choice for owner-operator show trucks, commercial highway fleets, municipal vehicles, and agricultural equipment, this 24-diode LED lamp produces a brilliant, full-pattern light output design that ensures superior signal clarity for oncoming traffic.
Engineered with epoxy-encapsulated electronics, the internal LED circuitry is permanently sealed to defend against moisture intrusion, corrosion, and severe road shock. Its standard 2" x 6" oval profile installs easily using common 60 Series mounting grommets and accepts standard right-angle 3-wire PL-3 harness connectors for straightforward installation.
The Truck-Lite 6050A Signal-Stat offers heavy-duty reliability combined with sleek, show-truck visual appeal. Built with an impact-resistant polycarbonate lens and housing, it eliminates fragile incandescent filaments that frequently fail under extreme road vibration.
Backed by Truck-Lite's 2-Year Manufacturer Warranty, the 6050A provides long-lasting, dependable front-end signaling for heavy trucks, trailers, and vocational equipment.
