SKU
18050R
Manufactures SKU
TRUCK-LITE 18050R

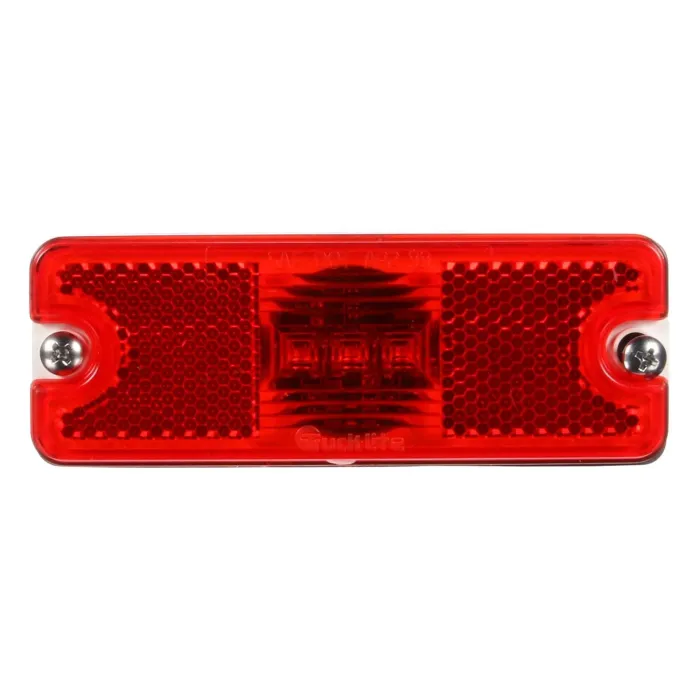

18 Series - LED - Red Rectangular - 3 Diode - Marker Clearance Light - P2 - 2 Screw - Reflectorized - Hardwired - Blunt Cut - 12V - Kit
$32.80
EA
18 Series - Reflectorized - LED - Red Rectangular - 3 Diode - M/C Light - P2 - 2 Screw - 12V - Kit
Features & Benefits
Uses standard mounting holes and accessories - Draws less current - allowing more power for other vehicle requirements - OmniVolt versions also meet ECE standards - Not suitable for PC requirements - OmniVolt versions address increasing vehicle power demands by operating equally in electrical systems ranging from 10 to 30 volts - Meets SAE J592e standards - Meets SAE J594f when mounted with no rollout or rollback
Brand
TRUCK-LITE
Common Size
2 x 5
Current Major Amp
0.05
Housing Material
Acrylic
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
1.63
Lens Material
Acrylic
Lens Shape
Rectangular
Lens Width
4.5
Lighting Technology
LED
Mount Type
2 Screw
Mount/Trim Color
Red
Mounting Connector Diameter
1.375
Number of Diodes/Bulbs
3
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
18 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
A | P2
UPC
0735111062424
UNSPSC
25172900
VMRS
034-004-253
Warranty
3-Year
Shipping Weight (lbs)
0.160000
Total Height
1.63
Total Width
4.5
