High-Efficiency 3-Diode LED Array: Engineered to provide maximum amber light output with a minimal electrical current draw, reducing overall strain on your vehicle's alternator.
-
Integrated Diamond Shell Reflector: Features a highly effective reflectorized lens design. When mounted properly, it complies with strict safety standards for a legal reflex reflector, keeping your trailer visible even when parked or unpowered.
-
Vibration-Resistant Solid-State Build: Because LEDs have no brittle filaments to break, this light is exceptionally resistant to the grueling shock and vibration of heavy commercial hauling.
-
Hassle-Free Retrofit Installation: Uses standard 2-screw mounting holes and footprint spacing, making it a quick, direct replacement upgrade over older, dim incandescent fixtures.
-
Weatherproof Sealed Acrylic Housing: The scratch-resistant, fade-resistant yellow acrylic lens and housing are sonic-welded together to permanently lock out moisture, dust, and corrosive road grime.
-
Universal Blunt Cut Connection: Comes hardwired with a 2-wire, 18-gauge blunt-cut wiring harness plug side, allowing for clean, reliable splicing into your existing 12V system.
-
Full DOT & FMVSS Compliance: Certified to meet rigorous FMVSS 108, CMVSS 108, DOT, and SAE standards for P2 and "A" (Reflector) ratings.
SKU
18050Y
Manufactures SKU
TRUCK-LITE 18050Y

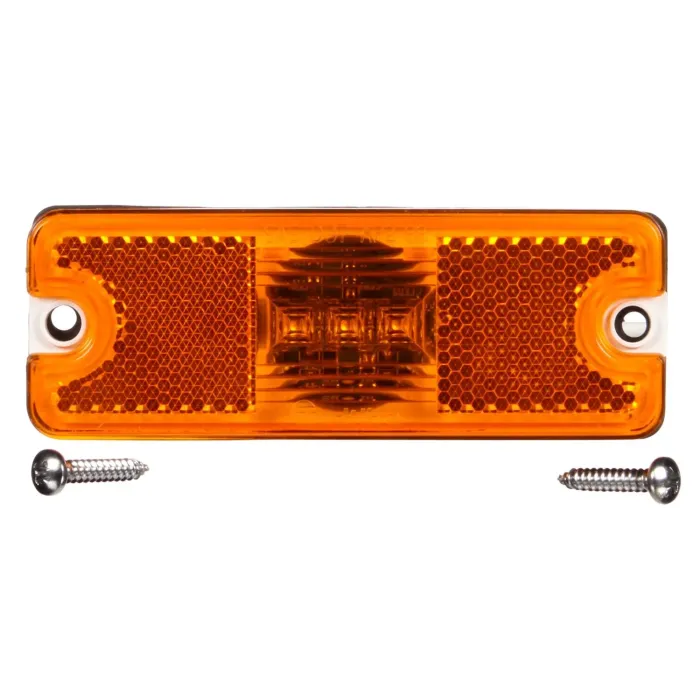

Truck-Lite 18050Y – 18 Series LED Yellow Rectangular 3-Diode Marker Clearance Light, P2, 2-Screw Mount, Reflectorized Diamond Shell, Hardwired, Blunt Cut, 12V, Kit
$32.63
EA
Enhance your commercial vehicle’s side and front visibility with the heavy-duty Truck-Lite 18050Y 18 Series LED Marker Clearance Light Kit. This 12V yellow (amber) rectangular 2" x 5" marker lamp features an efficient 3-diode LED array engineered to output bright, crisp safety lighting while drawing a fraction of the power required by old incandescent bulbs. Outfitted with Truck-Lite's signature Diamond Shell reflectorized lens, it pulls double duty as a passive safety reflector. Built with a fully sealed, impact-resistant acrylic housing and a hardwired blunt-cut lead, this kit is perfectly suited to withstand severe weather, road debris, and heavy highway vibration.
Features & Benefits
Brand
TRUCK-LITE
Common Size
2 x 5
Current Major Amp
0.05
Housing Material
Acrylic
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
1.63
Lens Material
Acrylic
Lens Shape
Rectangular
Lens Width
4.5
Lighting Technology
LED
Mount Type
2 Screw
Mount/Trim Color
Yellow
Mounting Connector Diameter
1.375
Number of Diodes/Bulbs
3
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
18 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
A | P2
UPC
0735111062431
UNSPSC
25172900
VMRS
034-004-253
Warranty
3-Year
Shipping Weight (lbs)
0.430000
Total Height
1.63
Total Width
4.5
